Einleitung
This guide involves the removal of various small screws and parts so make sure you are in a clean and organized environment to avoid the loss of any components.
-
-
To remove the SIM card, use an unfolded paperclip to press down on the metal plate on the left side of the phone until it pops up.
-
-
-
Gently push the screen toward the top edge of the phone and tilt the screen to reveal the black flex cables.
-
-
-
Release the two black ribbon flex cables by gently pulling up on the connection using the spudger. Then lift the screen to remove.
-
-
-

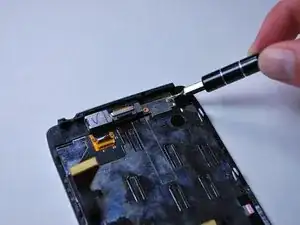

On the back of the LCD display, release the yellow front-facing camera ribbon cable by gently lifting upward on the black retaining clip with the spudger.
-
-
-

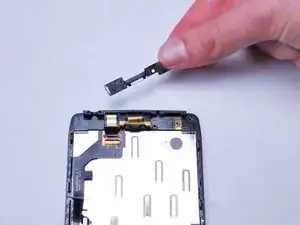

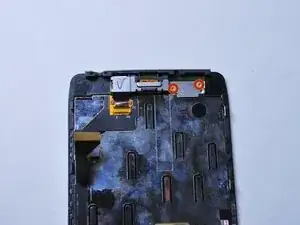

With a Torx T3 screwdriver, unscrew the two 2.0 mm screws on front-facing camera mounting bracket. Then lift to remove it.
-
-
-
Insert the spudger between the speaker and retaining clip and gently pry upward to release the earpiece speaker.
-
-
-

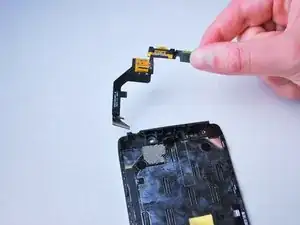

Using a spudger, gently pry up on the lower right edge of the black earpiece speaker ribbon cable, attached to the screen, to release it from the LCD display.
-
To reassemble your device, follow these instructions in reverse order.
