Motorola RAZR2 v9m Keypad Replacement

Geschrieben von: Sam Roach
  • Kommentare: 0
Motorola RAZR2 v9m Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to remove and install a keypad in a Motorola RAZR2 v9m. Also works for other RAZR2 v8 and RAZR v9 models.

  1. sj4GyMwnxLIZSDIe
    sj4GyMwnxLIZSDIe
    giZRVmYrounMewta

    • Push the rear cover toward the hinge of the RAZR2. The panel will slide about 3 mm.

  2. NEmVSWRp1NqZ3h2d
    NEmVSWRp1NqZ3h2d
    h4OcN6ZmRrvFEGgH
    Hc4y2torkwJQUoJi

    • Pinch the top and bottom edges of the panel and pull it away from the RAZR2.

    • The rear panel uses four small hooks to hold it in place. If the panel will not easily pull away, slide the panel more toward the hinge.

  3. LLrJSWWAo2DSV2io
    LLrJSWWAo2DSV2io
    fLEjVIEMZYbJZrf5

    • Gently pull the white plastic tab to lift the battery away from the RAZR2.

    • The white plastic tab is attached to the phone. Only pull it enough to expose the edges of the battery.

  4. iYJTnkrFKPDHXHyK
    iYJTnkrFKPDHXHyK
    i4ZAR2WBKivZaMbn

    • To remove the battery, grasp its edges pull away from the phone.

    • When installing a new battery, be sure the metal contacts on the phone line up with the ones on the battery.

  5. y5VQbtTc3rNMXgAA
    y5VQbtTc3rNMXgAA
    Z3Tv6BcG4Oc1FXxA
    QIx3q15C2YmZSBEJ

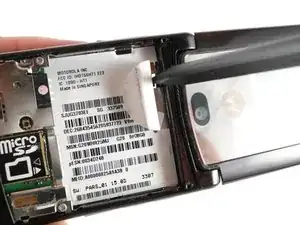

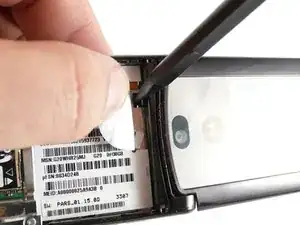

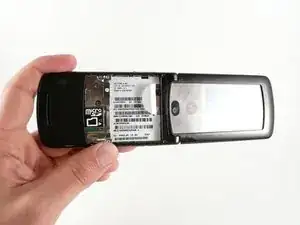

    • Flip the RAZR2 open with the battery compartment facing you.

    • Pull the white battery tab away from the phone to reveal a small black gap in the battery compartment.

    • Place the spudger into this gap. Rest the spudger against the black plastic inside of the gap.

  6. WV4amRUv3xEEwK3Y
    WV4amRUv3xEEwK3Y
    FkV5b6UweMWZkxWy
    xGBE6YcMFKncVI4F

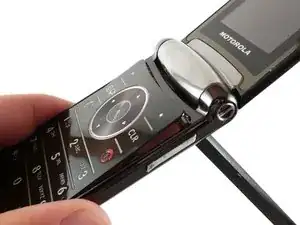

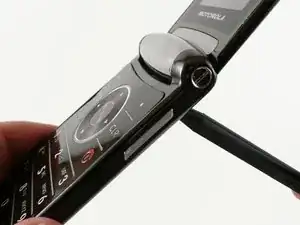

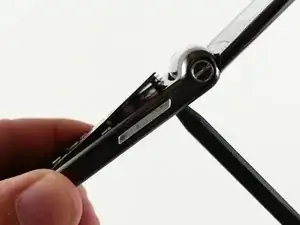

    • Rest the spudger/scewdriver between the top of the black plastic and the metal body of the phone and leaver the two apart to release the top clip on the keyboard.and the top of the keypad pops out from the RAZR2.

  7. FnfPYT1lWKaMOQZg
    FnfPYT1lWKaMOQZg
    2QTmnNZtE4KXbx1J
    RBLnnAoynyWFLEbp

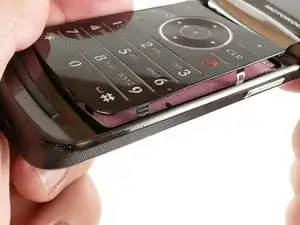

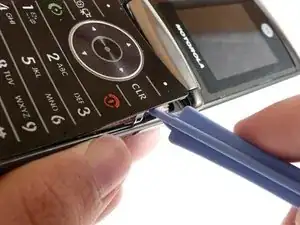

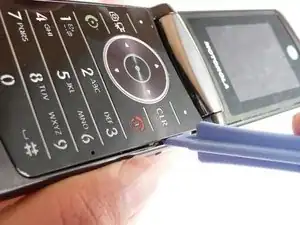

    • Use a plastic opening tool to gently pry one side of the keypad away from the RAZR2.

    • There are 2 clips on the side of the keypad. In total, there are 8 clips holding the keypad to the phone.

  8. yvCeSWCLPjSZ16FX
    yvCeSWCLPjSZ16FX
    FxirO1eDKFretLFb
    pP42m2VqeNOKlvo2

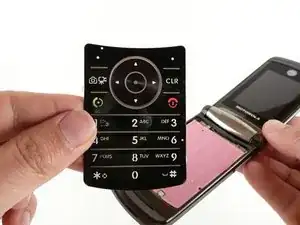

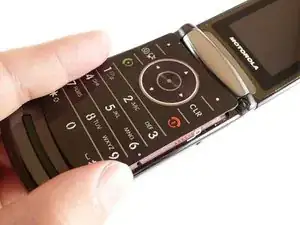

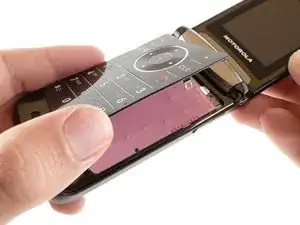

    • Lift the keypad away from the phone.

    • When reassembling, gently squeeze the sides of the keypad until the keypad has a slight bow running down the middle from top to bottom, like a playing card. This will ensure that it slides easily into place. Take care not to damage any of the 8 clips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
