Use this repair guide to replace a motherboard in a Motorola RAZR2 v9m.

  1. sj4GyMwnxLIZSDIe
    sj4GyMwnxLIZSDIe
    giZRVmYrounMewta
    • Push the rear cover toward the hinge of the RAZR2. The panel will slide about 3 mm.

  2. NEmVSWRp1NqZ3h2d
    NEmVSWRp1NqZ3h2d
    h4OcN6ZmRrvFEGgH
    Hc4y2torkwJQUoJi
    • Pinch the top and bottom edges of the panel and pull it away from the RAZR2.

    • The rear panel uses four small hooks to hold it in place. If the panel will not easily pull away, slide the panel more toward the hinge.

  3. LLrJSWWAo2DSV2io
    LLrJSWWAo2DSV2io
    fLEjVIEMZYbJZrf5
    • Gently pull the white plastic tab to lift the battery away from the RAZR2.

    • The white plastic tab is attached to the phone. Only pull it enough to expose the edges of the battery.

  4. iYJTnkrFKPDHXHyK
    iYJTnkrFKPDHXHyK
    i4ZAR2WBKivZaMbn
    • To remove the battery, grasp its edges pull away from the phone.

    • When installing a new battery, be sure the metal contacts on the phone line up with the ones on the battery.

  5. gNrvYN2MdPgiXw1K
    gNrvYN2MdPgiXw1K
    QrdQDjpOQfEgFvJO
    YGluRQhkanhcoxLQ
    • Gently press the pointy end of the spudger into the edge of the bumper until it bows and separates from the phone.

    • The bumper is held in place with adhesive. If you plan on reusing the bumper, then use clean tools to keep the surface sticky.

    • Grab the bowed portion of bumper. Gently lift and peel the bumper away from the phone.

    • Remember that the bumper will be sticky. Place it somewhere clean if you will be reusing it.

  6. u2KMBHEtaVGfoWyb
    u2KMBHEtaVGfoWyb
    cqkapStWLSkppMve
    • Remove the two 4-mm T5 Torx screws, previously hidden beneath the flip stop bumper pad.

  7. Xtb3ZwMVlNRmJb2j
    Xtb3ZwMVlNRmJb2j
    waCqEDLQLyigRwjQ
    • Close the phone and flip it onto its back.

    • Remove the two 4-mm T5 Torx screws.

  8. glJqDKWAmLvAkUN2
    glJqDKWAmLvAkUN2
    xKmoiOUWR4gBDGad
    • Wedge the spudger about 4 mm into the gap between the phone casing and the rear housing.

    • Pry the rear housing away from the phone until enough is exposed to grasp with your fingers.

  9. PXE5GIe2FdgwuJya
    PXE5GIe2FdgwuJya
    oYT3WjLWG1PGVGOK
    LMuTZtUSW2aepy2W
    • Tilt the loosened half of the rear housing away from the phone. The housing should easily separate after tilting it about 45 degrees away from the phone.

    • A small rubber cap (marked in red on the third image) loosely sits on the motherboard. It can easily fall off when removing the rear housing. Take care not to lose it.

  10. aMVUuEdDVIK1jfwk
    aMVUuEdDVIK1jfwk
    QAkEJP2Kq25VihaT
    wOT4epWvqSFNZoEF

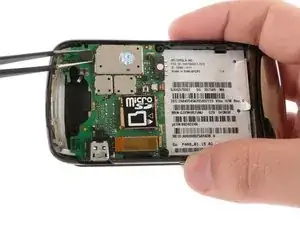

    • Use a pair of tweezers or your fingers to remove the small rubber cap from the motherboard.

  11. fVftCipu1LPdEdCo
    fVftCipu1LPdEdCo
    orbjxMDZaOgZcWeA
    3WXDcBMJCXRIN2CL

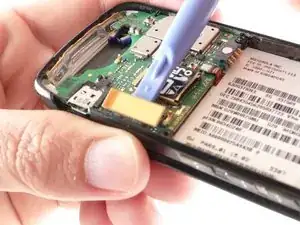

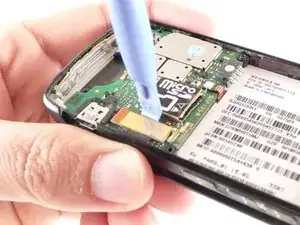

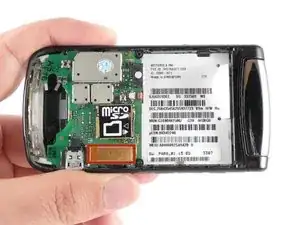

    • Use a plastic opening tool to gently pry the main motherboard cable connector away from the RAZR2.

  12. HKUUwWyNbOgRLsrU
    HKUUwWyNbOgRLsrU
    RktEGLH3VXs3CYdT
    jBOKanGFdhfGFyHx

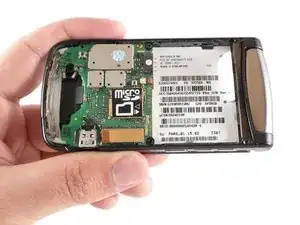

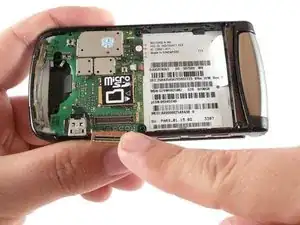

    • Use your finger to bend the connector away from the RAZR2.

  13. McpjEZoTTQVJtKD3
    McpjEZoTTQVJtKD3
    P2rjPKkVYCwi6kCN
    ZTXiKY1rc4GWHYRt

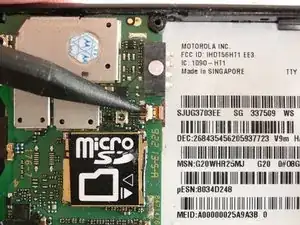

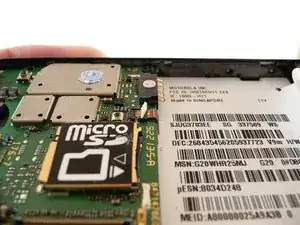

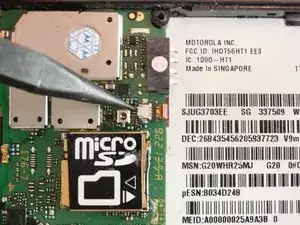

    • Use a spudger to flip open the white clamp holding the keypad ribbon in place.

  14. 4GQJTwKbISNS1OVi
    4GQJTwKbISNS1OVi
    D3QNDXirk3lptDgI
    1PbjAixADxrs5tMC

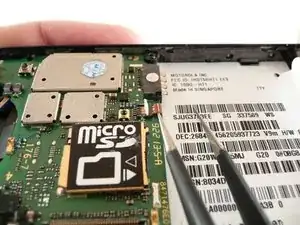

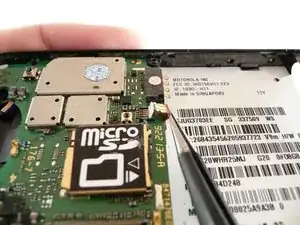

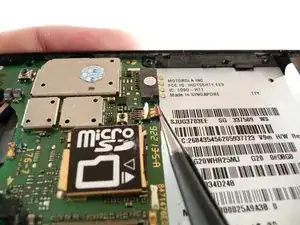

    • Slide the tip of a pair of tweezers between the motherboard and the keyboard cable.

    • Slide the keyboard cable towards the top of the phone, away from the motherboard.

  15. PSr6vKB4ewffqceH
    PSr6vKB4ewffqceH
    gIhIVpJRsFLBVkLK
    TgPEIBuaqKVkuQfN

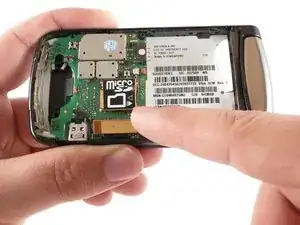

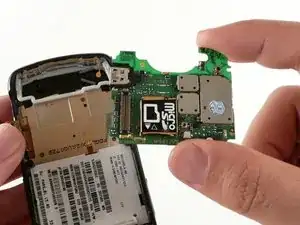

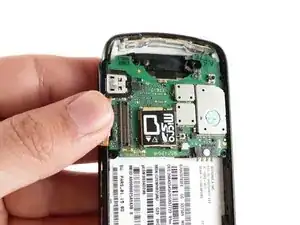

    • While holding the main motherboard cable connector away from the RAZR2, gently lift the motherboard away from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
