Motorola Razr V3 Upper Casing Replacement

Geschrieben von: Ian Cottengim
  • Kommentare: 2
Motorola Razr V3 Upper Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show you how to install the upper casing of the phone. This guide is necessary in order to remove the LCD screen or the call speaker.

  1. wwHQQg3vyTeYpApc
    wwHQQg3vyTeYpApc
    M2rbDlIvJ5HYVdhA

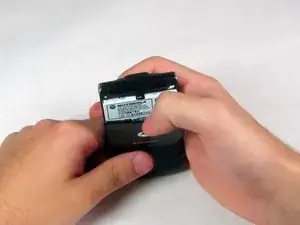

    • Remove the back cover by pressing down the silver button.

    • Pull the cover away from the phone.

  2. jPGnx6OoCyrYOCwt
    jPGnx6OoCyrYOCwt
    HEvDJNXUH1P6JyWq

    • Remove the battery by pushing down on the top and pulling it away from the phone.

  3. NfO2hNJoZliDCsCa

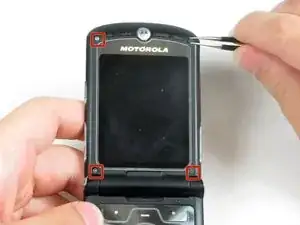

    • Use tweezers to pry off the four rubber screw covers from the inside face.

    • Our phone is missing the two left screw covers, be careful not to lose yours too!

  4. FgBjEWXSAmZWgYEe

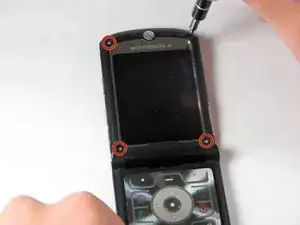

    • Remove the four T5 Torx screws that were underneath the rubber covers.

  5. ZZUgDaMCyaWNXGXT

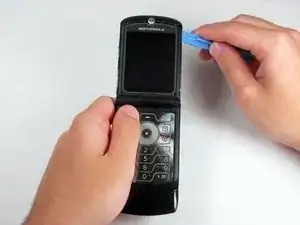

    • Use the plastic opening tool to pry the top cover away from the phone.

    • The side buttons on the phone may fall out when the top cover is separated from the phone. They can easily be put back by placing them in their original spot.

    The back cover is actually the front cover you see when the phone is closed. Hold it when you use the spudger to loosen it.

    Chris Kirsten -

    so done what youve said & in so doing ive broken the conecting silver strip that you never mentioed so now the phone is no good.

    Henry Bywater -

Abschluss

To reassemble your device, follow these instructions in reverse order.
