Motorola Razr V3c Camera (CDMA) Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to remove and replace the camera for a Motorola V3c.

  1. lN4HMetmS56KkHEU

    • Remove the four rubber pieces from all corners of the area around the screen.

  2. LqggNK5QVLLx5Gad

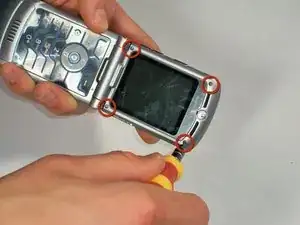

    • Use a T4 screwdriver to carefully unscrew all four screws on the outer screen.

    • Be sure that you do not strip or damage the screws.

  3. DEMBRxV4ElOQrI1X

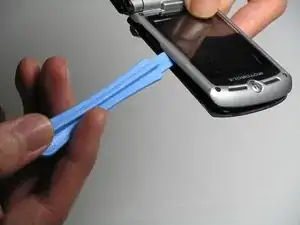

    • Carefully pry the screen away from the phone using a plastic spudger.

    • Pry slowly, as too much bending will crack the screen. There are also two fragile ribbon cables that connect the screen and camera to the phone.

  4. ENtrT5tVHAOcqgE2
    ENtrT5tVHAOcqgE2
    3aUcMI1KUyjVw3Rw
    KdtaElnrVYFRLlkK

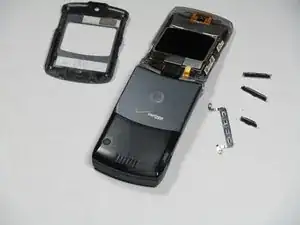

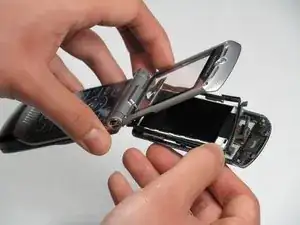

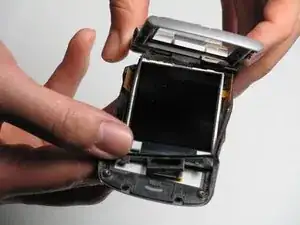

    • Take the screen housing off of the casing.

    • Watch for small pieces falling out of the screen during this step. Keep track of these pieces.

  5. wg5gEUZ22YwnSU2g
    wg5gEUZ22YwnSU2g
    Csoq42lTdTrwvqrS

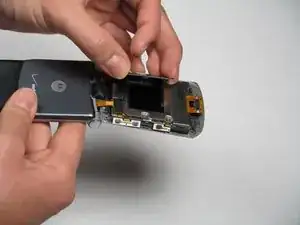

    • Pry screen cover off with plastic opening tool.

    • The screen cover has some adhesive holding it to the screen.

  6. mbQ6EDChNJSJvx45

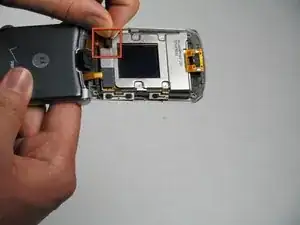

    • Remove small black sticker covering the camera ribbon connector.

  7. JiarKFFxRJBThPJv

    • Flip over small hinge that covers the camera ribbon connection.

  8. BcuWaAdffOY1yxnW
    BcuWaAdffOY1yxnW
    qdgacx6CFkLpLuWB
    OpRtTRkuTYVtJtD4

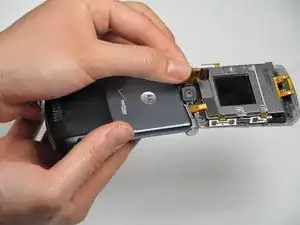

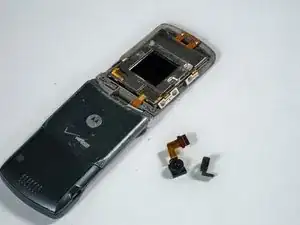

    • Pull off the rubber camera cover and camera.

    • The camera and camera cover may come off either separately or together.
