Motorola Razr V3c Lower Casing (CDMA) Replacement

Geschrieben von: krisko
  • Kommentare: 2
Motorola Razr V3c Lower Casing (CDMA) Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

The purpose of this repair guide is to show how to replace the lower outer casing.

  1. LsYKdNXvaQmcrGpg
    LsYKdNXvaQmcrGpg
    GN2C5FcbV156AXMJ
    dLyAYBRKKmCHONcJ

    • Press down on the the rear panel release button while simultaneously prying the rear panel straight away from the V3c.

    • Lift and remove the rear panel away from the V3c.

    With the phone closed, press the silver button shown with a fingernail or such. Tilt and lift the battery cover and put aside.

    walltoall -

  2. Jvw5t42gRRgChDWm
    Jvw5t42gRRgChDWm
    NOieVuYp4564XPJD

    • Remove the battery by pushing in the top of the battery and lifting it away from the phone.

    The Motorola V3 battery has a notch in one corner to ensure it can only go in one way. Fit the replacement battery by offering its bottom edge to the device, then tilt and click using thumb pressure.

    walltoall -

  3. Sw6wIymviSjs1YnW

    • Unscrew the two screws in the back using the T6.

  4. S2SPiv4wdw45EQr2

    • Use the plastic opening tool to pop the bottom and the sides off the back casing.

    • Be careful not to pull the back lower cover off too far as it is connected to the phone body by a ribbon.

  5. HHkJw4KEGBmLBNRc

    • Peel off the connector between the motherboard and the body of the phone.

  6. PNXZN6pDWQasDldu
    PNXZN6pDWQasDldu
    KSONbCtnxuVIS56S

    • Pull out the two black rubber covers using tweezers.

    • The second rubber cover is much harder to get out.

  7. gVT3WiElteXdUYeA
    gVT3WiElteXdUYeA
    BJpwkx36Z65Zq5oV

    • Pull out the white plastic cover by unclipping the two plastic pieces shown.

  8. 5YNsLNoNOgpGDjL1

    • Pull out the speaker.

  9. XQMu6uC6NOABQNqX
    XQMu6uC6NOABQNqX
    KpsIBmQraYPYJNYQ

    • Pull out the motherboard.

    • You may also now replace the bottom lower casing

  10. qmWlYiTUhCKdSwM2

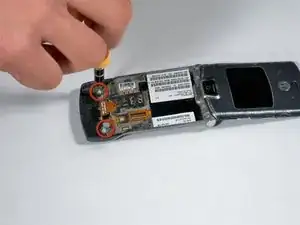

    • Unscrew the two screws holding the plastic speaker cover to the phone with a T5 screwdriver

  11. QfsdefUjbXIau3KA

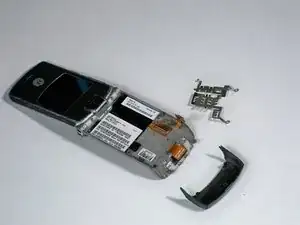

    • Pull off and replace the lower front casing

    • The metallic grounding grid will come off when the lower front casing is removed

    • Make sure to reinsert the metallic grounding unit when re-screwing the new lower bottom casing

Abschluss

To reassemble your device, follow these instructions in reverse order.
