Motorola Slvr L7 Camera Assembly Replacement

Turn off your phone before beginning disassembly.

To replace the camera, first begin by removing the battery.

Push down on the black tab at the Motorola phone’s top center to detach the back phone cover and access the battery.

Remove the battery on the back of the Motorola phone by pulling it away from the back of the phone.

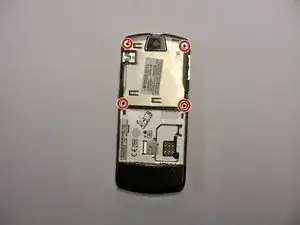

Remove the four (4) T6 Torx screws from the back of the metal back plate.

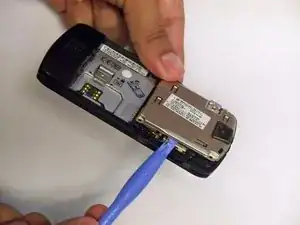

Remove the metal cover by inserting the flat end of the iFixit Opening Tool under the side of the cover, prying it away from the phone.

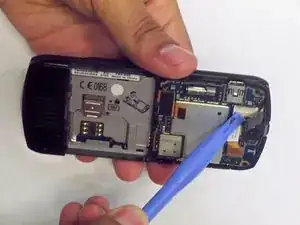

Carefully separate the two connectors from their sockets on the motherboard using the flat end of the iFixit Opening Tool, so the two connectors are open.

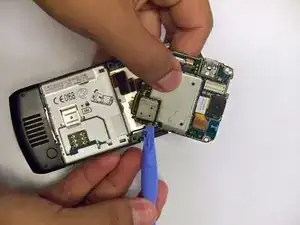

Use the flat end iFixit Opening Tool to pry the antenna cable connectors from their respective sockets on the motherboard.

Pull the antenna cable out to de-route it from the phone.
