Einleitung

This is a guide for replacing the back speaker for a Motorola V276 phone.

  1. AKGFSPPftxKI2BqP
    • Locate the silver button on the back of the phone, near the bottom.

    • Depress the silver button with one hand and slide the back cover of the phone away from the antenna.

    • The back cover should slide off easily.

  2. 1mn1qsfv5eOsZnJ4
    • Insert a plastic spudger near one corner of the battery (preferably one furthest from the phone's antenna).

    • Gently pry the battery up and away from the phone. The battery should easily raise out of its place.

    • Now that the battery is exposed, use your fingers to remove the it from the phone.

  3. qg4hlTKXvDyuyC3A
    qg4hlTKXvDyuyC3A
    qrmUfmyDSOnZ1sWg
    • Note the metal connections on the phone, which are now exposed with the battery removed.

    • There are corresponding metal connectors on the replacement battery.

    • When you install the battery, be sure both connectors are matched up. Otherwise, your battery will be unable to supply power to your phone.

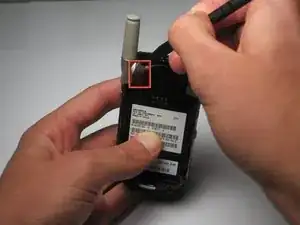

  4. eufKN5c5RoMIwUaU
    • Use Spudger to remove rubber plug from upper left corner of the back of the phone

  5. irdrqj1UtFbitsLv
    • Using a Hex T6 screwdriver, remove the 4 screws holding the back plate of the phone in place

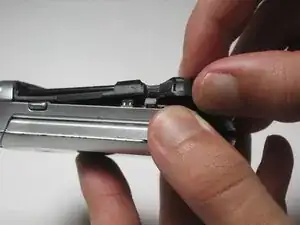

  6. yqkEcFcyPAvCuiYM
    yqkEcFcyPAvCuiYM
    24giCFFwxYihaIte

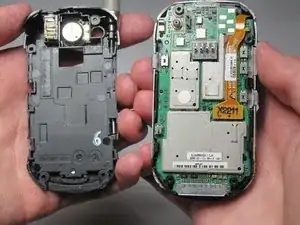

    qNc2DaWulBHBEjqL
    • Using your hands, pull up on the back plate while pulling on the 3 side tabs to remove the back plate.

    • Be careful when removing the back plate; don't put too much stress on the back plate or the plastic may snap

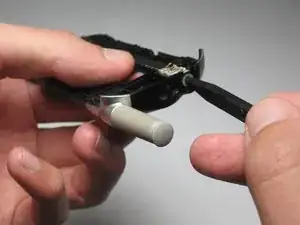

  7. oL6bOpcbLoKMN6l3
    oL6bOpcbLoKMN6l3

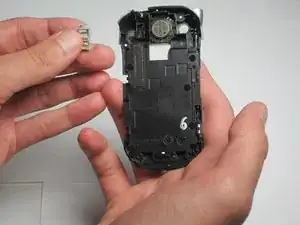

    oSR2go6EASgbuL5s
    • On the back casing, using a spudger, push into the headphone jack at an upward angle to pop it out

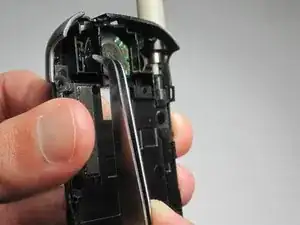

  8. BVFggFJ4lxMhRVO4
    BVFggFJ4lxMhRVO4
    ZKjq6TrjYqgHfWNL
    • Using tweezers or your hands, pick out the semicircular plastic border between the speaker and headphone jack

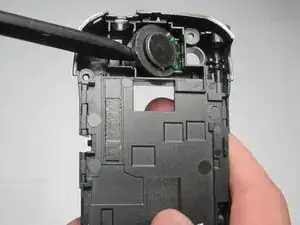

  9. YpmPjeVtYiMeyyBE
    • Using a spudger, remove the speaker

Abschluss

To reassemble your device, follow these instructions in reverse order.
