Want to replace your keypad with a new one? Follow the steps provided, and you'll have it working in no time.

  1. 2MHIyVdjJvpCHnuu
    • Flip the phone over so that the back is visible.

    • Push down on the silver button using your fingernail or thumbnail. Push down all the way until the button stops.

  2. hvUONQrPmfNQM3Cd
    hvUONQrPmfNQM3Cd
    u1dxTAYXlRR1CxK2
    qJSCDJhD3y1oCZiM
    • While holding down the silver button, simultaneously pull downward on the rear cover, then lift it off to reveal the battery.

    • This will only take a moment to do.

  3. FpE32CmUHUOdYFWI
    FpE32CmUHUOdYFWI
    uXgPefKPfJux2xZR
    GTq5YJjCyJbGsQay
    • Using your thumbnail and fingernail, grip the battery where indicated as "pull here" and lift the battery upward, starting at that side.

    • Remove the battery completely by lifting it straight out of the phone.

  4. 2gbMoSCLOvwjx5oE
    • When replacing the battery, ensure that the side that has the "pull here" arrows goes toward the bottom of the phone. Place the side of the battery with the metallic contacts in toward the inside of the phone, making a full connection with the contacts within the phone (shown in the red rectangle).

  5. G216EgdEBlwFEth6
    G216EgdEBlwFEth6
    BHFkbBvJVX51Fmkv
    K2A4KXUepFjBTFiI
    • Using a small flat head screwdriver or your fingernail, remove the rubber covers near the top of the phone

  6. 6dM1Oc1sUTEqnAIk
    6dM1Oc1sUTEqnAIk
    XtKWSC2jBZHbUwSW
    ZENNtP5MFVMHMJTK
    • There are four Torx screws located on the four corners of the rear panel

    • Remove all four screws using the T6 Torx Screwdriver.

  7. LUP6KQrZOjhuOhBl
    LUP6KQrZOjhuOhBl
    GXYmT5OPTxaIEJeT
    d162pCgsCRqyg5Vc
    • Unscrew the antenna.

    • Remove the antenna protective tubing

  8. AYHPZimynKxLxRdE
    AYHPZimynKxLxRdE
    5IdCjWQZYleqoXiR
    LiBQjKpSiJSAXoyW
    • There are four light gray tabs located around the phone (two on each side)

    • Using your finger nail or a flat head screwdriver, pull the gray tab away from the body while simultaneously lifting upward on the black rear panel.

    • Once all four tabs are removed, lift up the back panel to reveal the interior logic board.

  9. ntyDAwyu2246BSNW
    • Make sure the phone appears as shown after removing the rear panel.

  10. UMPQnTWNVr3osXuB
    UMPQnTWNVr3osXuB
    WrynOWvmIAYW1Fm1
    2DnXuScRtRufDQBD

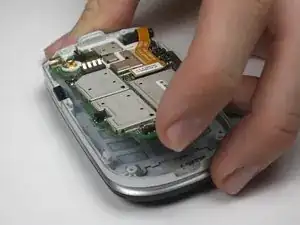

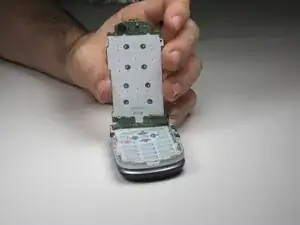

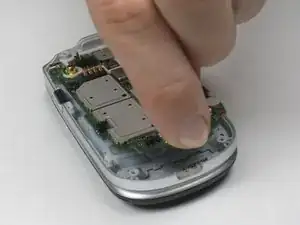

    • Gently lift up the logic board by placing your index finger at the top while keeping your thumb at the bottom of the phone for leverage.

  11. qCVW6ZJcQEi3BYlt
    qCVW6ZJcQEi3BYlt
    xxaRXaGg1WmWcanT
    IIUNmxFyd2KsgULO

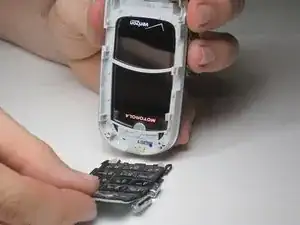

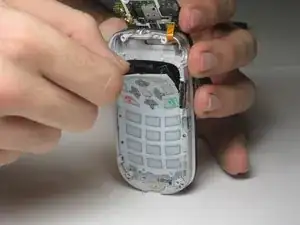

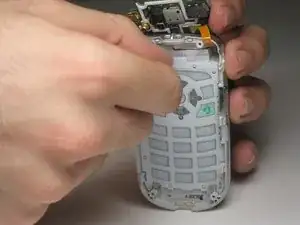

    • Gently remove the keypad from the phone by getting a grip on the top of the keypad and slowly peeling it top to bottom.

Abschluss

To reassemble your device, follow these instructions in reverse order.
