Motorola V400 Camera Replacement

Geschrieben von: Brian Avsec
  • Kommentare: 0
Motorola V400 Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

To complete this guide you will need a pair of tweezers, a Torx T-6 screw driver, and a wedge to pry with. Before you start be sure to turn off the phone, remove the battery, and find a clean, water free work space.

  1. YAmMpFQKmUL2OVF2
    YAmMpFQKmUL2OVF2
    EjCqoANUcQ4WUJlR
    fbMO13QjMVY6EqbT

    • First, gather your tools.

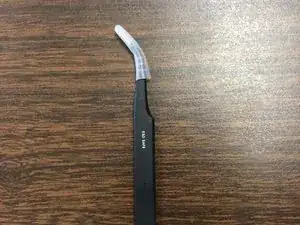

    • Tweezers

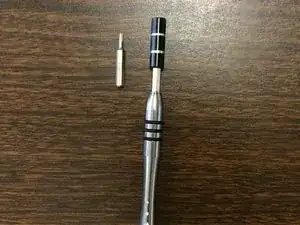

    • T6 Torx driver

    • Plastic opening tool

  2. EyAdMRLQSCQ12oWt
    EyAdMRLQSCQ12oWt
    HcYXR2dRIEOtK2fw
    ttGWwGWnxmF2bV6U

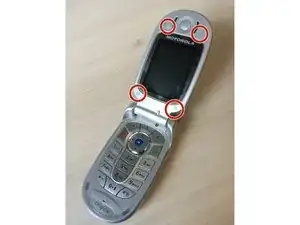

    • Take out the battery first!!!

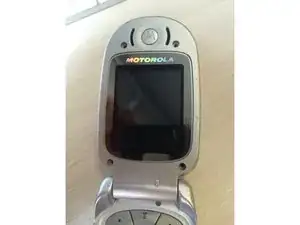

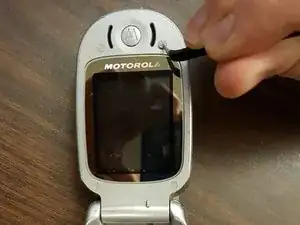

    • Remove the four rubber stoppers around the main screen with tweezers.

  3. D2rIyTKEOWOMByuf
    D2rIyTKEOWOMByuf
    bnaVx3PtusUY6jlN
    5bRHCHRFKlxbtnDr

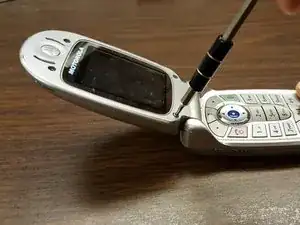

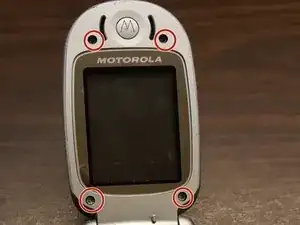

    • Use a Torx T-6 Screwdriver to unscrew the 4 screws around the screen.

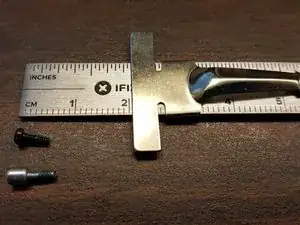

    • Note that the top screws are black the the bottom screws are silver and that they are different lengths.

  4. hQBOP6eVsYU2nTyw
    hQBOP6eVsYU2nTyw
    susgHBUf2ysvKPc1
    5lvTMFVtvrJnxYa3

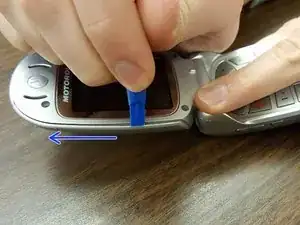

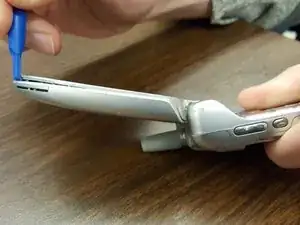

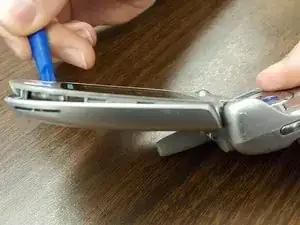

    • Use a plastic opening tool to separate outer shell from metal interior cover by sliding it along the crease in the case.

    • To easily take off the case close the phone before trying to remove it.

  5. 25IQnfg4UkvelSrx
    25IQnfg4UkvelSrx
    UZeOyfsP3aiKQxJy
    mAgdOQmdPiTcJDLP

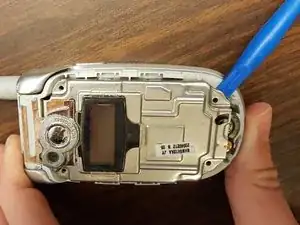

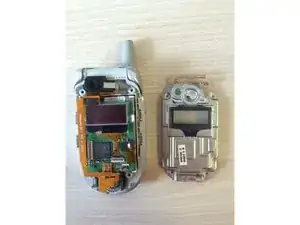

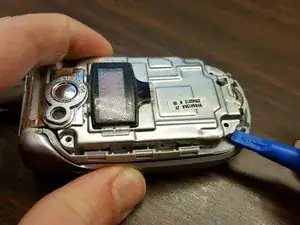

    • Use a plastic opening tool to separate the inner metal cover from the circuit board. Apply pressure to remove the piece.

  6. 43QoIZKtSRmovI3C
    43QoIZKtSRmovI3C
    oBtbLyEC6JHSQYHS
    TWXDSeeTUrpVjLUd

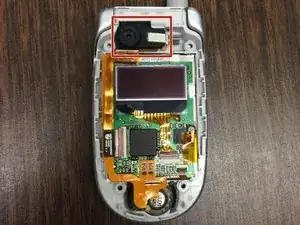

    • Remove rubber covering over the camera.

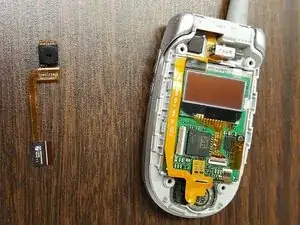

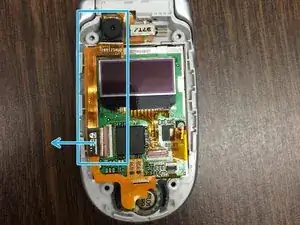

    • Carefully remove camera and the attached orange ribbon by gently pulling on it. Pull out in the direction of the blue arrow. You can use your fingers or tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
