Motorola V551 Earpiece Speaker Replacement

Geschrieben von: gregatron
  • Kommentare: 1
Motorola V551 Earpiece Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

25 Minuten

Einleitung

This guide is for removing the phone's earpiece speaker.

  1. 5DJPRKqdrNLtNsTL
    5DJPRKqdrNLtNsTL
    CGWwZZtp3VtFyqyJ
    MZoj2hvO66Caodpy

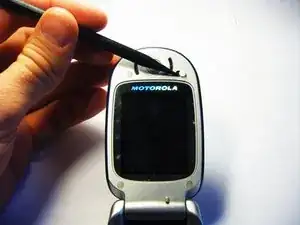

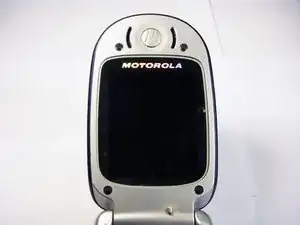

    • On the phone's face, remove the four rubber caps from the screw covers using a spudger.

  2. 6ktWOaVGgIll5lPb

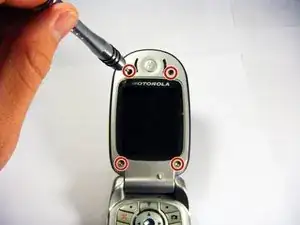

    • Unscrew the four cover screws using a T6 Torx screwdriver, turning counterclockwise.

  3. h4mVMsrNi2PeUokl
    h4mVMsrNi2PeUokl
    I4xAQoashFrVaVKb

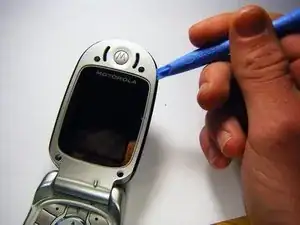

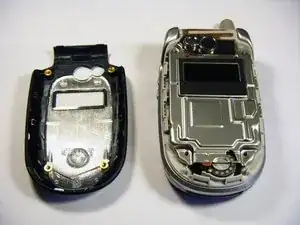

    • Loosen and remove the protective cover using a plastic opening tool.

  4. bER1oLtYqdU4LUPv
    bER1oLtYqdU4LUPv
    vONeYK4R1VeItf2f

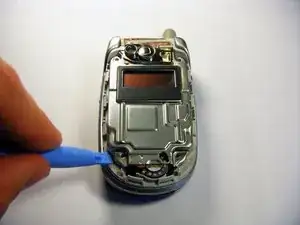

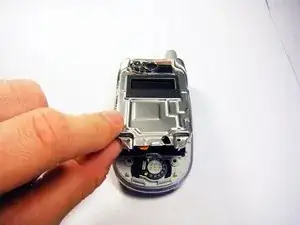

    • Gently loosen the second protective cover with the plastic opening tool.

    Do not pry from the top or bottom of the metal cover. There are a pair of 1/4" long openings on either side of the metal cover at the midpoint of the case. The plastic teeth which lock into the openings must be withdrawn. I used the point of cuticle sissors to get behind the metal strip under each tooth and pull outwards a small distance to release each tooth. The sides of the cover will spring up.

    Fonce -

  5. o5qRPRpbLQs3hce2
    o5qRPRpbLQs3hce2
    2flpCsfMZZcePQfx
    U156s5j5AOxduucm

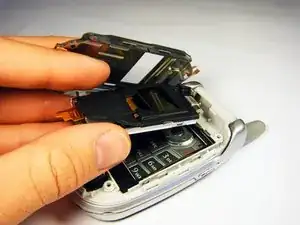

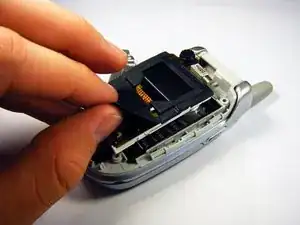

    • Carefully remove the protective cover from the circuitry.

    • Slowly peel the black rubber gasket off of the circuit board.

    • Carefully move the camera out of the way using your hand.

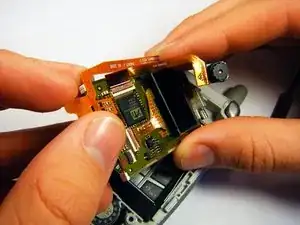

    • Use a flat tool to disconnect the upper and lower circuit boards.

  6. j4mGGe1DvJpLNrC6
    j4mGGe1DvJpLNrC6
    LPAmyRDAhAU1AdSQ
    oLtugVHUXAYkqWy2

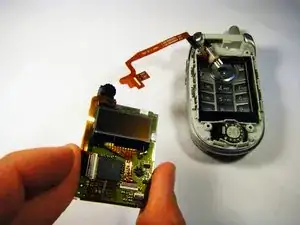

    • Gently slip the copper strip out from under the circuitry by using your hand.

  7. IrTgC3QVMxvqiCUq
    IrTgC3QVMxvqiCUq
    ghQBEkCQMYGwMKxe
    L4IBD54GJkxhlXpf

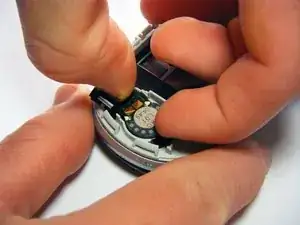

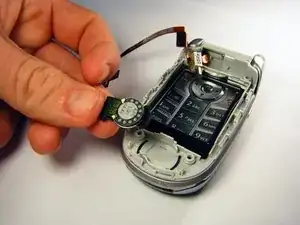

    • Pry out the speaker using your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
