Motorola V60c Keypad and Keypad Logic Board Replacement

Geschrieben von: Ryan Kuroiwa
  • Kommentare: 1
Motorola V60c Keypad and Keypad Logic Board Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

How to replace the keypad and keypad logic board.

  1. SCGYqgMxGYZ6wQbJ
    SCGYqgMxGYZ6wQbJ
    imPKO2NDYNFJRWLw

    • Depress the silver button.

    • Pull from top of phone to lift the cover.

    A spudger may be helpful

    Nick -

  2. TRwtCDgwjFUyjIFe
    TRwtCDgwjFUyjIFe
    2UDeDfDlA1yFqbsE

    • Hold battery from both sides at the bottom.

    • Push upwards and gently lift to remove.

  3. LMewJ3cmrVGPapID

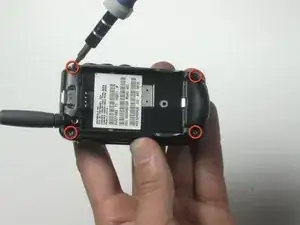

    • Remove 4 screws from corners using T-6 screwdriver.

    • NOTE: Bottom two screws are gold.

    • NOTE: Make sure screws return to correct place when reassembling.

  4. Rv5yRbNxQlEoNbg5
    Rv5yRbNxQlEoNbg5
    JOwLhfkdnYLiDsSW

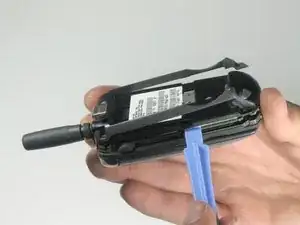

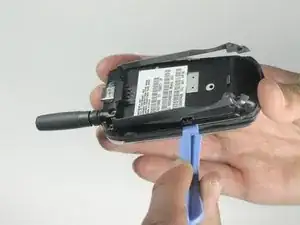

    • Use plastic opening tool to pry up back cover from two side clips.

    • NOTE: Sticker might be attached to rest of phone.

  5. F2SCj3jB31uOsdew

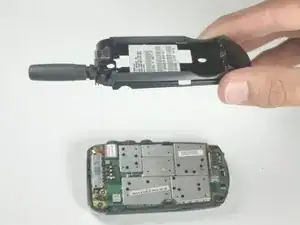

    • Remove the back cover.

  6. aEbVfBiMaYvxma26
    aEbVfBiMaYvxma26
    OB2ZLX4nsjEctWOB

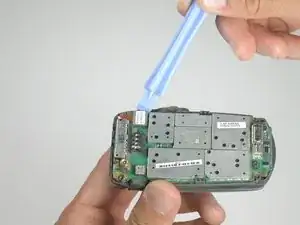

    • Use a plastic opening tool to gently remove the orange ribbon cable.

    • Lift up the main logic board.

    • NOTE: Rubber side buttons are not secure and might detach from the main logic board during removal.

  7. xCZBQZ1KfjFEZxwY
    xCZBQZ1KfjFEZxwY
    nkPKSHGZXCNPNOHB

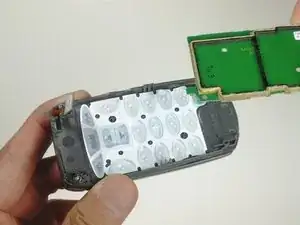

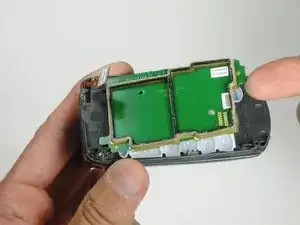

    • Remove the keypad logic board.

    • NOTE: Plastic spacer is not secured to keypad logic board and might detach during removal.

  8. jqdWXMKIPmyMJswy
    jqdWXMKIPmyMJswy
    eGkXae6X3s3gVydu
    xuavpbm5A6CsHYhG

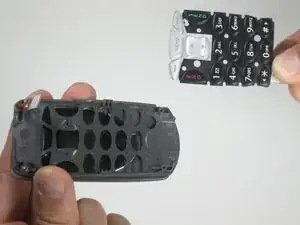

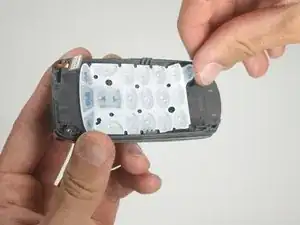

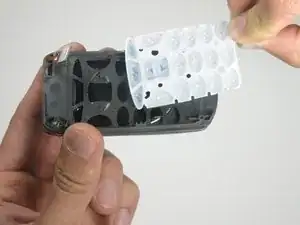

    • Remove the keypad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
