Motorola V60s Button Key Pad Replacement

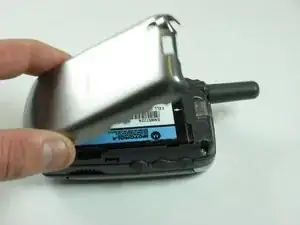

Push in release lever towards top of phone, then use blue spudger to pry case off.

After case is removed from the back of the phone, you can simply use your hands to take it the rest of the way off.

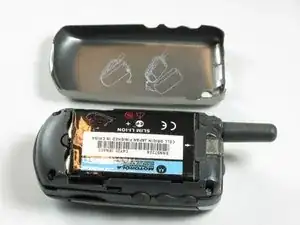

Set cover aside in a safe location.

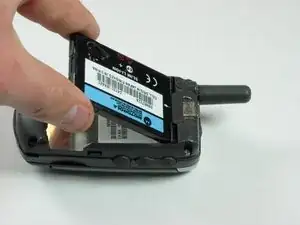

Carefully grab battery towards bottom of phone.

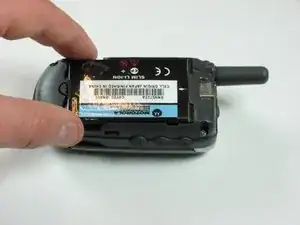

Lift from bottom and take out of phone, set aside in a safe location.

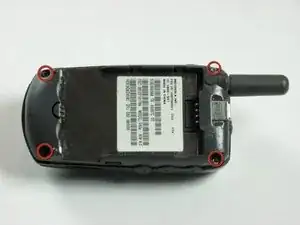

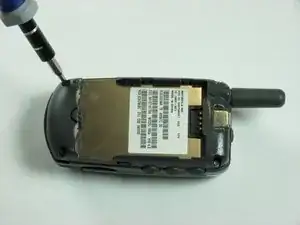

Unscrew four corner screws with T6 screwdriver.

Note: The two top screws are short and silver. The two bottom screws are black and long.

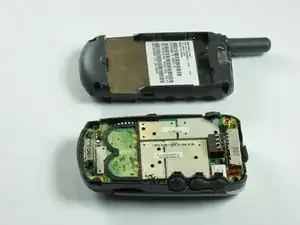

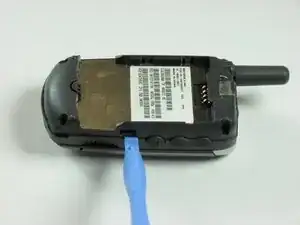

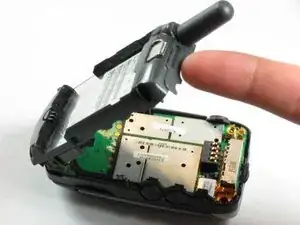

Use a spudger to gently pry off back chassis. Wedge the spudger in crevice between back panel and phone and lift.

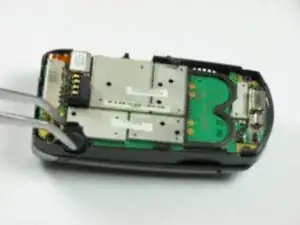

Starting from left side of phone, remove side buttons and place aside.

Note: There should be three buttons. One on each side, and the top.

Return phone to starting orientation when done.

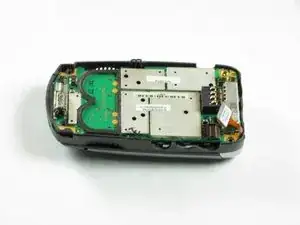

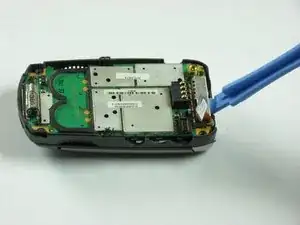

Gently remove orange ribbon cable by prying up with spudger.

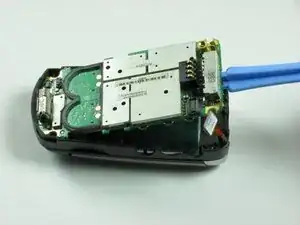

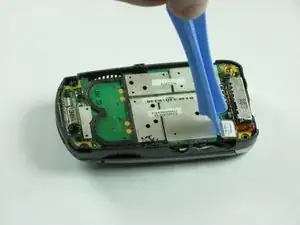

Use a spudger to pry up logic board by wedging in between logic board and chassis and lifting.

Note: Orange ribbon cable is fragile and can be broken.

Insert spudger under button board and gently lift, set aside.

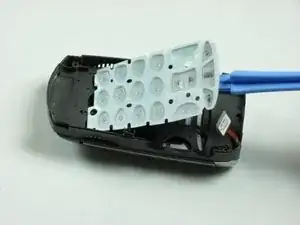

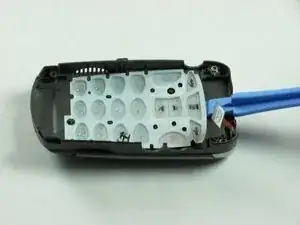

Life button keypad with spudger and set aside.
