Motorola V60s Front Chassis Disassembly

Geschrieben von: Eric Freeman
  • Kommentare: 0
Motorola V60s Front Chassis Disassembly

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to take apart the front casing. This allows access to the front LCD screen.

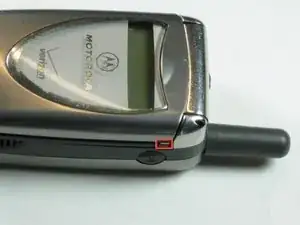

  1. Y22fQdueHDe3IGcj

    • Push in and hold small release latch.

    • Hold the latch through step 2.

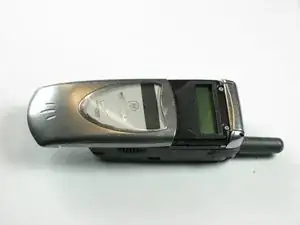

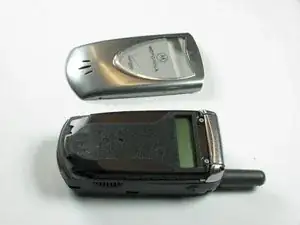

  2. NuKXqcO2BPCFtDR4
    NuKXqcO2BPCFtDR4
    WGnwMStxtwojLYkH
    g3kWZBPMalbmLI6M

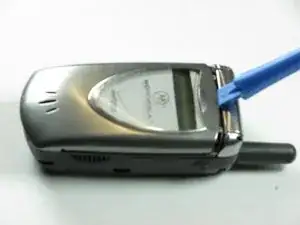

    • While holding the release latch, use a opening tool to help you slide off the front cover.

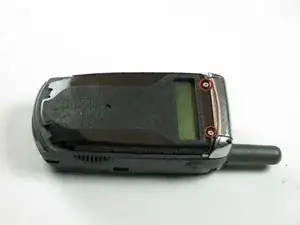

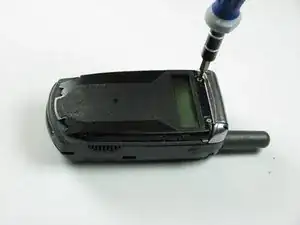

  3. jFLVi5SHcNTS5sBe
    jFLVi5SHcNTS5sBe
    iXHAtjXXVsbJB3Ns

    • Remove the two Philips screws at top of phone with a #1 Philips screwdriver.

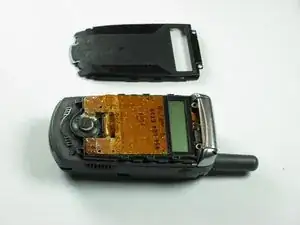

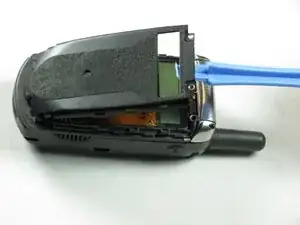

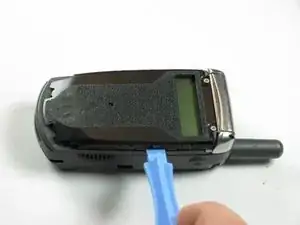

  4. 6nHgTXVpA1KZYsDY
    6nHgTXVpA1KZYsDY
    JNehIk2ZAVARMSmd
    Ll6WPTGCZceVWHJw

    • Use a opening tool to gently pry off black cover, revealing the internal LCD display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
