Einleitung

  1. tF4SADSuKtDnQZHl
    tF4SADSuKtDnQZHl
    E32Q1ilFmAVSBcQU

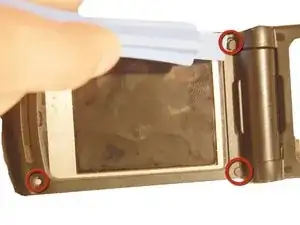

    • Use the blue plastic opening tool to pry off all four of the rubber stickers from the upper inside face.

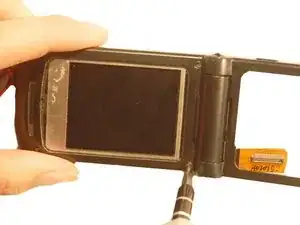

    • Use the Torx T5 screwdriver to remove the four 5.4 mm screws from the upper inner face.

  2. X6FXWnC3sCQrAWXU
    X6FXWnC3sCQrAWXU
    Mj3CZNyTcwFneTqF
    mdhlKRQyIqeUyKdn

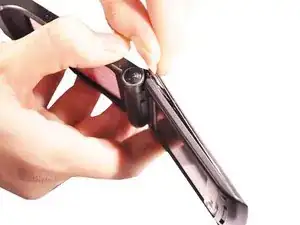

    • Use a flathead screwdriver or plastic opening tools to help pry the top cover away from the phone.

  3. 2JDtIc2CIyPq6WCx
    2JDtIc2CIyPq6WCx
    sSxrGwlSvNohwsit

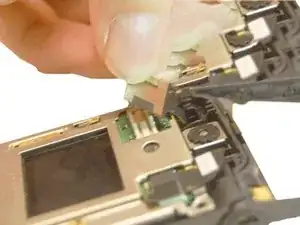

    • Pull the flex cable connection away from the top of the phone.

  4. pHAiMQTSLCfE6RXM
    pHAiMQTSLCfE6RXM
    cdnPCkEmE6gpMpXA

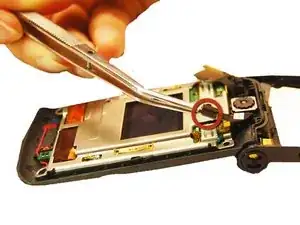

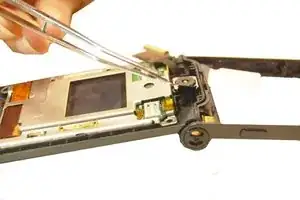

    • Pull the camera connection away from the top of the phone.

  5. 6mhtkJdsgxdMJRAV
    6mhtkJdsgxdMJRAV
    GK2TB5JsO2nagEkQ
    uqMLFcaCroRVpLDS

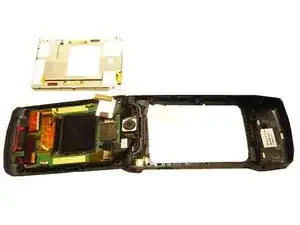

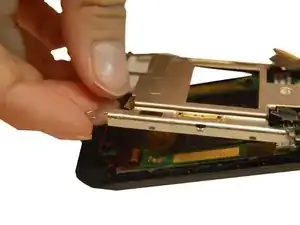

    • Pull the upper metal frame away from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
