Motorola XOOM 2 Media Edition Battery Replacement

Geschrieben von: Taylor
  • Kommentare: 0
Motorola XOOM 2 Media Edition Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 7 Minuten

Einleitung

Having troubles charging, holding a charge or keeping your device powered on? This guide will help your replace your battery. You will need to purchase a new battery before beginning.

  1. d6HRXElywnfuIMSQ
    d6HRXElywnfuIMSQ
    FAUwlgyjgirFeDbi

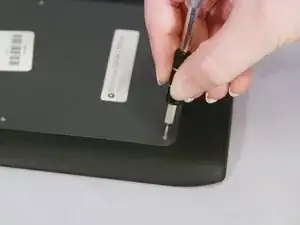

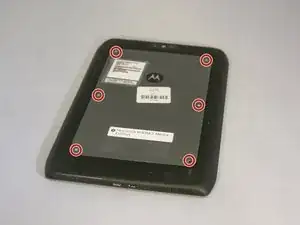

    • Power off your tablet before beginning disassembly.

    • Remove six 2.74mm Torx #3 screws from the back panel of the device with a Torx T3 screwdriver.

  2. DYCJxxJ6FXqk4X2e
    DYCJxxJ6FXqk4X2e
    qiTCnLQIBX6vNIY5

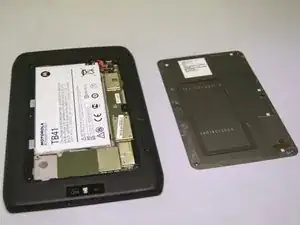

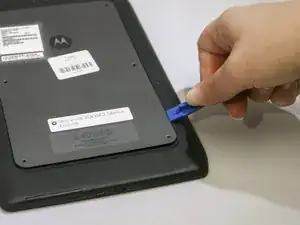

    • There is adhesive attached to the underside of the back panel. Gradually lift panel to avoid bending it out of shape.

    • Pry off the back panel with a plastic opening tool.

  3. senloqwZCcZWUJaK
    senloqwZCcZWUJaK
    WNX2PLBIFFimH2CU

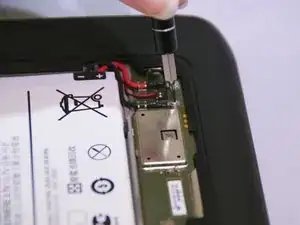

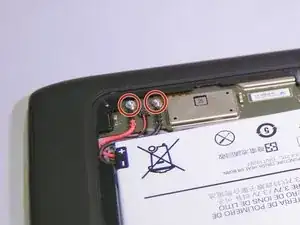

    • These screws are tight and prone to becoming stripped.

    • The battery cables are likely to snap when removing the screws.

    • Remove two 2.38mm Torx #5 screws from battery cables with Torx T5 screwdriver.

  4. aPppNnqUMZtY1mSL
    aPppNnqUMZtY1mSL
    ZtpxcyE6BeAqfd3e
    gjgkXujaxqU5QBVQ

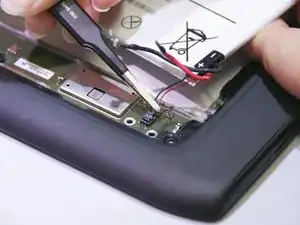

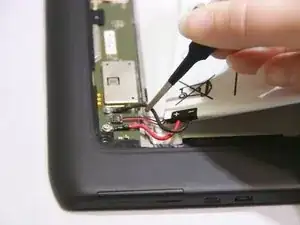

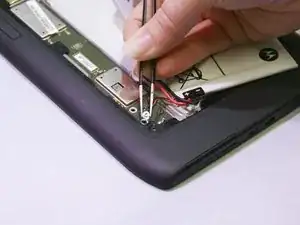

    • Pull up the battery cables and battery chip with tweezers.

  5. cso6knRDyBWoxcIF
    cso6knRDyBWoxcIF
    xHBXjkOIPu4QikaY

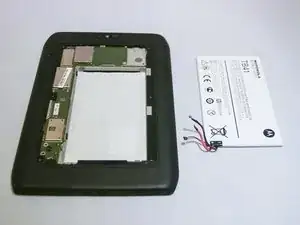

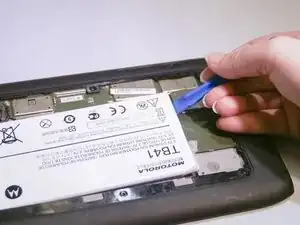

    • Pry the battery out of the device with the plastic opening tool.

    • Some force is needed to lift the battery up because of the adhesive attached to the backside of the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
