Einleitung

As this replacement guide works on an internal component of the Xoom Wifi, completion of prior steps to remove external parts is necessary.

  1. GDAQiTUpC4VuDvUZ
    GDAQiTUpC4VuDvUZ
    BbVWMIxMRFJJSIuJ

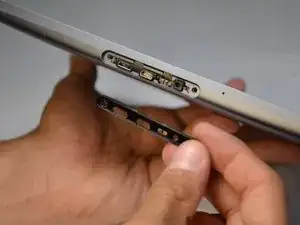

    • There are two 6.6 mm screws that hold ports into place as well as the back panel. Remove these with a T5 Torx screwdriver.

  2. CVV1DovpZlHIoBqX
    CVV1DovpZlHIoBqX
    qKF5Q1tTPjVfxhHG
    • Apply light pressure with hand and slide the back plate till it stops in this position.

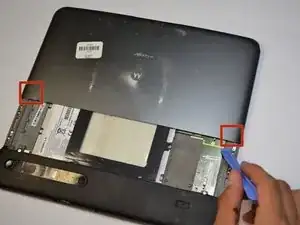

    • There is a flex clip on both sides that need to be pushed down in order for the plate to slide off completely. Use a plastic opening tool to release the flex clips. They are located under the back cover near the sides.

    • As soon as the clips are released the back should slide off.

  3. TprdyVxBMPZlBZKy
    TprdyVxBMPZlBZKy
    NBN2UGTkxmhNrxDe
    a2TGJEL3yyfbMwOA

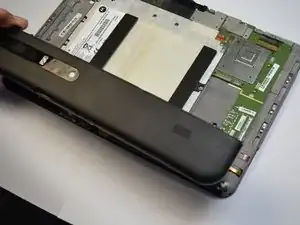

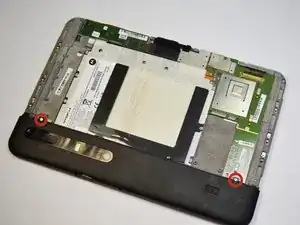

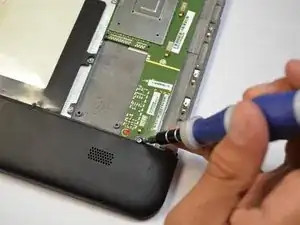

    • Remove last two 4.2 mm screws from the remaining back piece with a T5 Torx screwdriver.

    • Once both screws are taken out, lift the rest of the backing out of the way.

  4. rOBlWGMNOWtER6xm
    rOBlWGMNOWtER6xm
    yKhELyr22wLbwMEX

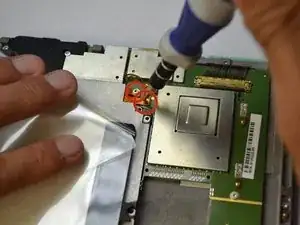

    • Remove the two battery leads with a T-5 Torx screwdriver.

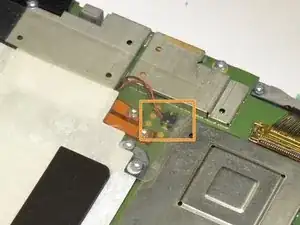

    • Grab the red and black wires with your fingers and gently lift to disconnect black wire connector from the motherboard.

  5. tvJaTnbkaCj6FebP
    tvJaTnbkaCj6FebP
    iPAqMwIFiACIHhKg

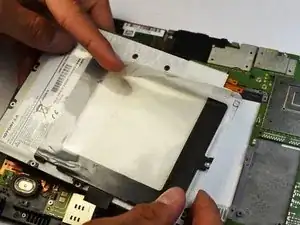

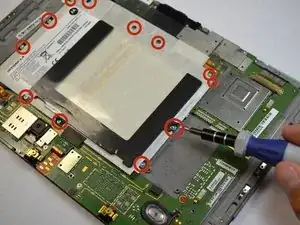

    • All that holds the battery in are twelve screws. Remove them with a T-6 Torx screwdriver.

    • The battery should lift out easily.

  6. aORkbUIOpqhIxBIj
    aORkbUIOpqhIxBIj
    QoToW2bLHMNaYkht

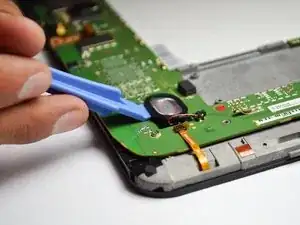

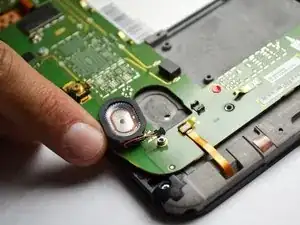

    • Use a plastic opening tool to pop out the speaker. Make sure to carefully pull off the wire as well.

    • Replace speaker if necessary.

  7. KHNqHoaIZ3uqTGRF
    KHNqHoaIZ3uqTGRF
    TBENIwcQ42FtJJnP

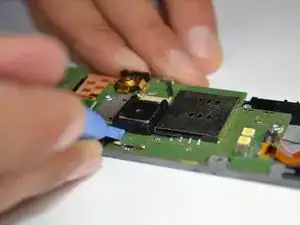

    • Use a spudger or a fine tip to lift the black tab to a vertical position.

    • A spudger is needed to remove the plastic border around the camera.

  8. LgC24AWLJZHSCvJX
    LgC24AWLJZHSCvJX
    BQuQCvxGbSEdONuK

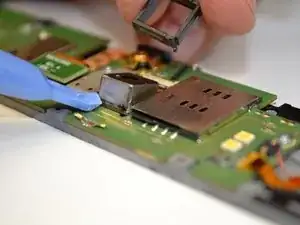

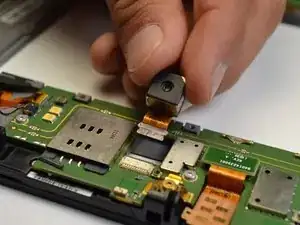

    • When lifting the camera out, be sure to pull the orange ribbon cable as well.

  9. oviKWxbvKU6v1cCr
    oviKWxbvKU6v1cCr
    SEveuvNPAqf6Fclp
    rIAJVdPXV44CBtCI

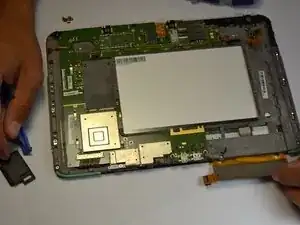

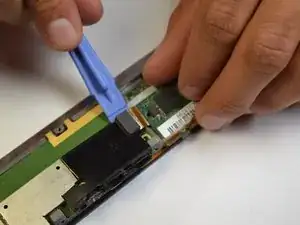

    • Take a plastic opening tool and carefully pry off the touch screen controller connection.

    • Be careful with the black cover under the connection.

  10. ZJChrvDBKsCQNDWs
    ZJChrvDBKsCQNDWs
    ewa6aWtLtpxdQZLb
    f3SmdRnCb564nJnS

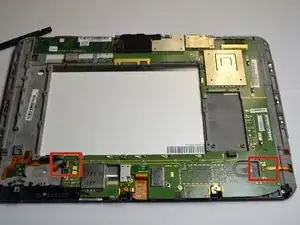

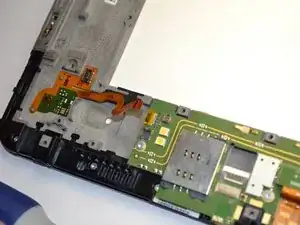

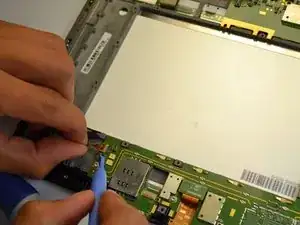

    • There are two relay wires that must be disconnected.

    • Pull both relay wires out of their connection ports.

    • Make sure to flip up the small black tab before you pull out the wire.

  11. NCEF3IVyUYGXRuFt
    NCEF3IVyUYGXRuFt
    la3ejK2KwVJkBLVY

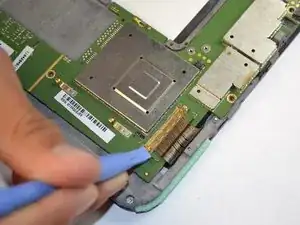

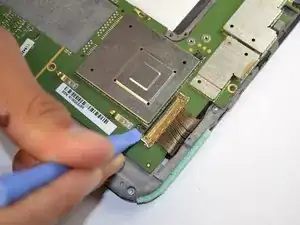

    • Using a plastic opener, lift the metal bar clasping the wire harness to the motherboard.

  12. O6HF5ceKWF2UDLFp
    O6HF5ceKWF2UDLFp
    2pYQuHucrFD4UjtV
    tOkEuDZrbFy4uHT6

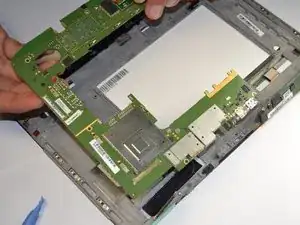

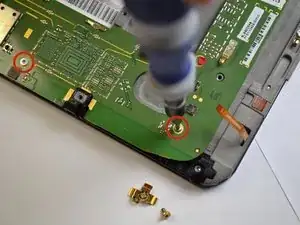

    • There are eight 3.5mm screws that hold the motherboard in. Use a T-5 Torx screwdriver to take the screws loose. These screws are outlined in a gold color on the motherboard.

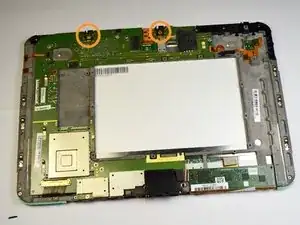

    • Two gold colored screws with brackets are located in the orange circles. A T-5 Torx screwdriver is needed to take these 3.1mm screws.

    • Motherboard should lift out easily and completely.

  13. 6uADAQCmiF1m6mm2
    6uADAQCmiF1m6mm2
    5KDZkqgOX3b35fCr

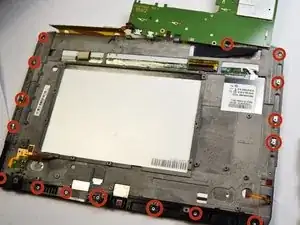

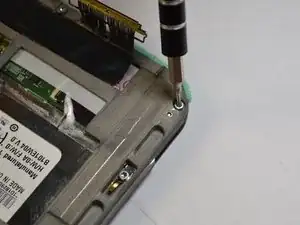

    • Using the T-6 Torx screwdriver, unscrew the 17 4mm screws along the edge of the screen frame.

  14. 5PxNYrZZGBAD2DWo
    5PxNYrZZGBAD2DWo
    pWucWCZHCf4PCfxq

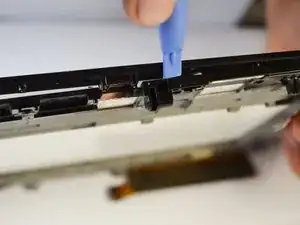

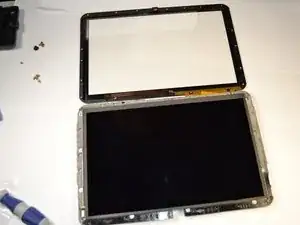

    • Take the small plastic opening tool and separate the front glass from the screen frame.

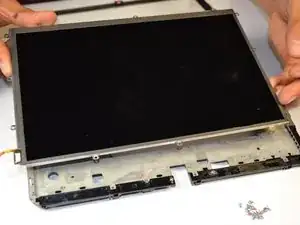

    • Unfold the glass and the frame flat on the table.

  15. IrOdnLw6fvKXHFeF
    IrOdnLw6fvKXHFeF
    n3vXblkLGrJiQ6fV
    EDGKQlcSjmQmw5aJ

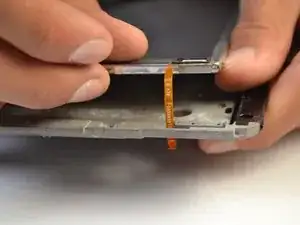

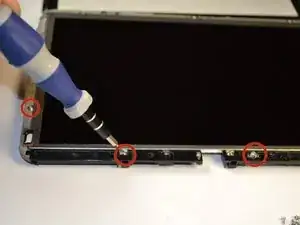

    • Using the T-5 Torx screwdriver, unscrew the 12 4.1mm screws along the edge of the screen.

    • Pull ribbon wire out of slot in the frame to pull the screen off of the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
