Einleitung
As this replacement guide works on an internal component of the Xoom Wifi, completion of prior steps to remove external parts is necessary.
Werkzeuge
Ersatzteile
-
-
There are two 6.6 mm screws that hold ports into place as well as the back panel. Remove these with a T5 Torx screwdriver.
-
-
-
Apply light pressure with hand and slide the back plate till it stops in this position.
-
There is a flex clip on both sides that need to be pushed down in order for the plate to slide off completely. Use a plastic opening tool to release the flex clips. They are located under the back cover near the sides.
-
As soon as the clips are released the back should slide off.
-
-
-
Remove last two 4.2 mm screws from the remaining back piece with a T5 Torx screwdriver.
-
Once both screws are taken out, lift the rest of the backing out of the way.
-
-
-
Remove one screw with a T-5 bit.
-

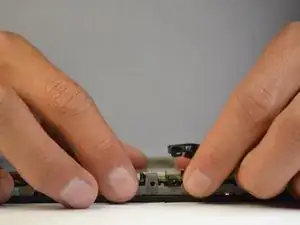

Lift the black casing off of the ports.
-

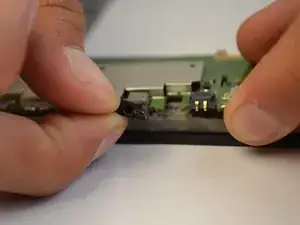

Remove earphone port from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
