Motorola i1000plus Screen Circuit Board Replacement

Geschrieben von: Matthew Byrd
  • Kommentare: 0
Motorola i1000plus Screen Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

Cell phone screens can easily be broken, but luckily, replacement is simple. This guide does not require any technical knowledge other than how to use a screwdriver. Any user should be able to replace their screen on this device.

  1. K2TshIscWnUvQ5bS
    K2TshIscWnUvQ5bS
    2Hk5MiYYLjrXDJgU
    SlQcByHwXY3AipHT

    • Be sure phone is powered off before removing the battery.

    • Push the tab located at the bottom of the battery towards the top of the phone.

    • Lift the battery away from the phone.

  2. EolFfxUM1GAis5pp
    EolFfxUM1GAis5pp
    OANYFltdvgeJg4FA
    Gu2UHZcwNICXtMOP

    • Grasp the antenna between two fingers and turn it counterclockwise until it is unscrewed.

    • Pull the antenna straight out of the phone.

  3. DxFl5nFuTUK4FmNE
    DxFl5nFuTUK4FmNE
    lJxldvNTDqWIfMHE
    ATyDjIgx6ORc6WjI

    • Pry off the bottom piece using the spudger.

    • There are notches on the edge of this piece that can be used to aid prying.

  4. jFTZqnfBIpsu1aO3

    • Remove the sticker overlaying the NEXTEL logo.

  5. mpWatnaSMEl3a1P4

    • Using a Torx T8 screwdriver, remove the two screws exposed after removing the sticker by unscrewing counterclockwise.

  6. QAIr3DhflaJyYQY6
    QAIr3DhflaJyYQY6
    PSfyKi2OAmQAAyqc
    CX3tjBqxewNGFOXB

    • Starting from the bottom and working towards the top, use a spudger to pry the back cover off the phone.

  7. ewCwgpLwllyJWpj6

    • Using a Torx T8 screwdriver, remove the two circled screws by unscrewing counterclockwise.

  8. pBn1nqFrbc6BBeZc
    pBn1nqFrbc6BBeZc
    SJTBsG1pPZuLi12O
    ZZIgZNsNVR3um6a2

    • Using a pair of tweezers, firmly grasp the connector at the top of the phone and pull the connector straight away from the phone.

    • Do not pull the connector off by the wire. This could damage or destroy the wire or connector.

  9. NL4vtvmGxUxecjl1
    NL4vtvmGxUxecjl1
    utnVQ5FdSESujMKg

    • Unclip the ribbon cable, located underneath the motherboard, by using the spudger to push up on the dark brown part of the connector located on the circuit board.

    • Do not pull the motherboard too far away from the phone with the ribbon cable still connected. this will damage the cable or the motherboard.

  10. PMVNhZY3LbYDVlGY
    PMVNhZY3LbYDVlGY
    STVhsNfvxCAYeZt2

    • Remove the motherboard by firmly grasping the edges of the circuit board with one hand and the phone with the other and pulling up on the motherboard slightly and then pulling it straight down toward the bottom of the phone.

    • Be sure to pull straight down to disconnect the ribbon cable properly. Pulling in another direction may cause damage to the cable or the motherboard.

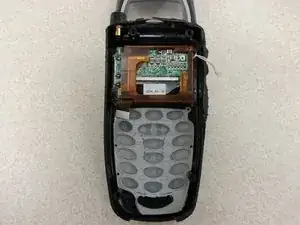

  11. mRiSwZwHYfYQ3TNQ
    mRiSwZwHYfYQ3TNQ
    FRSaGaUxCgKZtcaD
    hGayvSwPehjXjafJ

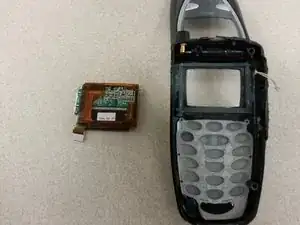

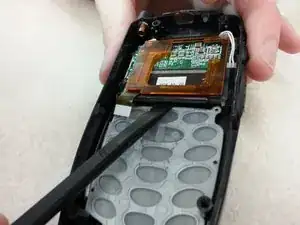

    • Using a spudger, pry the screen circuit board out of the front phone case.

    • This circuit board is lightly glued in place so there will be some resistance when removing it.

    • Be careful not to touch the screen or the plastic in the front phone case as both can be easily scratched.

Abschluss

To reassemble your device, follow these instructions in reverse order.
