Einleitung
The keypad protects the phone's interior while enabling the user to input commands into the phone.
-
-
Place the phone on a flat surface with the front facing down.
-
Insert your finger under the gray plastic cover at the bottom end of the phone.
-
Lift the cover off the phone.
-
-
-
Place your thumb in the notch in the lower left corner of the battery compartment.
-
Lift the battery up and away from the phone.
-
Remove the battery.
-
-
-
Locate the metal slider that holds the SIM card in place.
-
Push the slider away from the metal flap which contains the SIM card. The flap will pop up.
-
-
-
Lift the metal flap to gain access to the bottom of the SIM card.
-
Remove the SIM card by sliding it out parallel to the bottom of the flap.
-
-
-

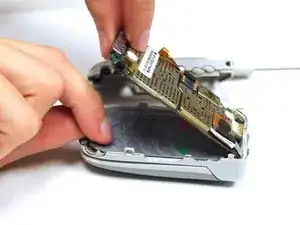

Gently lift the end of the circuit board farthest from the phone hinge.
-

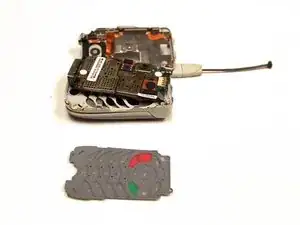

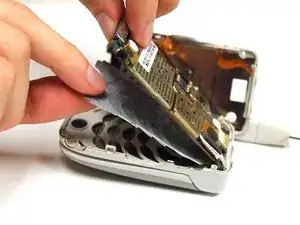

Grasp the keypad at the bottom of the phone, raise it, and pull it away.
-
To reassemble your device, follow these instructions in reverse order.
