Einleitung

Removing the speaker requires the removal of the motherboard, which requires nearly a full dis-assembly of the phone.

  1. kleheYJRke2OPAwZ
    • Place thumb on the rubber tab on the lower back of the phone.

    • Push away from the phone to release back panel.

  2. lgVWOIXpm3CFDT4g
    • Lift the back panel of the phone to expose battery (not shown here).

  3. 5Iu12VlKZDWGRKSW
    • Pull antenna up, away from the phone, to reveal two of six screws.

  4. LFG6ywWfFJZijZDR
    • Unscrew all six 5.4 mm screws on the back side of the phone using the T-6 screwdriver bit.

  5. mgrEgLMgDWFTP1VX
    mgrEgLMgDWFTP1VX
    TDBEu4jnEXV2sR4T
    • Gently separate the front and back sides of the phone.

    • Be careful not to break or bend the ribbon cables.

  6. vVrUcUUjXj3qviou
    vVrUcUUjXj3qviou
    6UsULOm6Me2WNmRR
    • Detach the first ribbon cable by unplugging it from the logic board.

  7. dIBNmJVgFsVHqCY4
    dIBNmJVgFsVHqCY4
    CkRtb4BLgcHmZSBJ
    3Z1kGDlFkKo3weHg
    • Gently remove the side button by pulling the buttons away from the phone.

  8. eHWZXnqiCUeWXLC5
    eHWZXnqiCUeWXLC5
    daXtiW2u2ZiFfLA4
    BdYQiE6LcjcQ1fqE
    • Grab the tab at the bottom of the metal plate, and pull to remove the plate from the phone.

  9. dIOxtbxKHM3VZIUx
    dIOxtbxKHM3VZIUx
    fvFHueBSlHgaaQwl
    G1VFRVCbXlLUlPTp

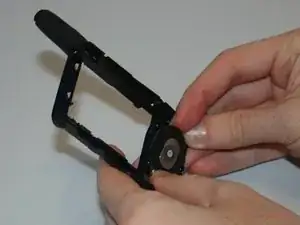

    • Slightly bend the phone frame to expose microphone protrusion.

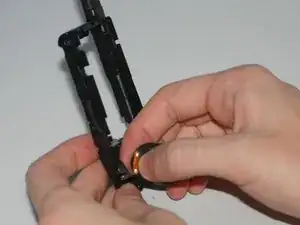

    • Gently remove microphone using your fingers.

  10. I1Z3jVGXuxrZIUWj

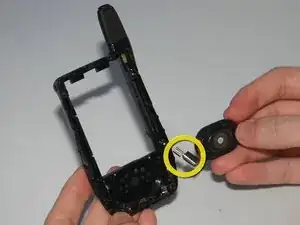

    • Once the microphone has been removed, remove the connecting piece

Abschluss

To reassemble your device, follow these instructions in reverse order.
