Motorola i560 Side Volume Button Replacement

Geschrieben von: Haley S
  • Kommentare: 0
Motorola i560 Side Volume Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The side volume button installation guide will require removal of the battery to access the location of the side volume button. This guide can be used to replace damaged volume buttons.

  1. kleheYJRke2OPAwZ

    • Place thumb on the rubber tab on the lower back of the phone.

    • Push away from the phone to release back panel.

  2. lgVWOIXpm3CFDT4g

    • Lift the back panel of the phone to expose battery (not shown here).

  3. 5Iu12VlKZDWGRKSW

    • Pull antenna up, away from the phone, to reveal two of six screws.

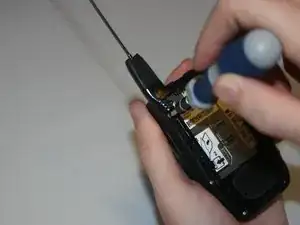

  4. LFG6ywWfFJZijZDR

    • Unscrew all six 5.4 mm screws on the back side of the phone using the T-6 screwdriver bit.

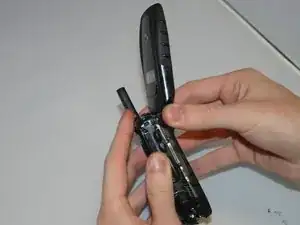

  5. mgrEgLMgDWFTP1VX
    mgrEgLMgDWFTP1VX
    TDBEu4jnEXV2sR4T

    • Gently separate the front and back sides of the phone.

    • Be careful not to break or bend the ribbon cables.

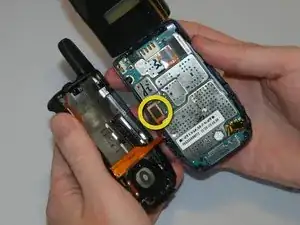

  6. vVrUcUUjXj3qviou
    vVrUcUUjXj3qviou
    6UsULOm6Me2WNmRR

    • Detach the first ribbon cable by unplugging it from the logic board.

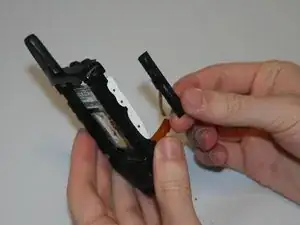

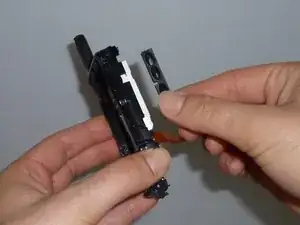

  7. dIBNmJVgFsVHqCY4
    dIBNmJVgFsVHqCY4
    CkRtb4BLgcHmZSBJ
    3Z1kGDlFkKo3weHg

    • Gently remove the side button by pulling the buttons away from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
