Einleitung
Once the back cover, battery, motherboard, and keypad have been removed, the keypad cover will be accessible for removal.
Werkzeuge
-
-
Slide the cover release button towards the bottom of the phone
-
Once the battery cover pops up, slide the cover towards the top of the phone and lift up.
-
-
-
With a T5 screwdriver, unscrew the four T5 sized screws that hold the case back cover onto the rest of the case.
-
Remove the plastic case back cover by gently pulling it away from the body of the phone, starting at one edge and working your way down to the other.
-
-
-
Lift the motherboard away from the case of the phone, being careful not to break the wire that goes up into the hinge.
-
Peel the motherboard off of the keypad. The two pieces are glued together and separate without much effort.
-
The motherboard should now be completely disconnected from the phone.
-
-
-
Once the motherboard has been removed from the keypad, the keypad sensor can be detached from the phone at the hinge.
-
Gently pry off the cable connecting the keypad sensor. The keypad sensor should now be completely separated from the phone.
-
-
-

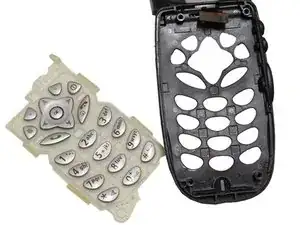

Once the keypad has been removed, the keypad cover can be easily peeled back from the front phone cover molding.
-
To reassemble your device, follow these instructions in reverse order.
