Einleitung
Once the back cover, battery, and motherboard have been removed, the keypad can accessed.
-
-
Slide the cover release button towards the bottom of the phone
-
Once the battery cover pops up, slide the cover towards the top of the phone and lift up.
-
-
-

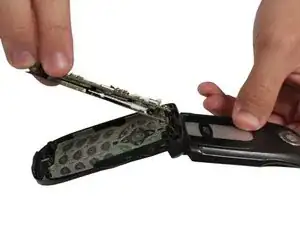

Lift the motherboard away from the case of the phone, being careful not to break the wire that goes up into the hinge.
-

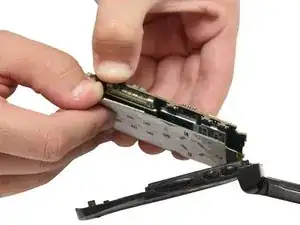

Peel the motherboard off of the keypad. The two pieces are glued together and separate without much effort.
-
The motherboard should now be completely disconnected from the phone.
-
-
-
Once the motherboard has been removed from the keypad, the keypad sensor can be detached from the phone at the hinge.
-

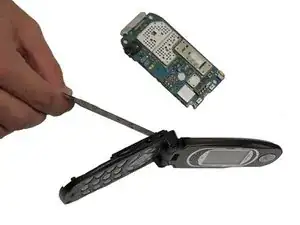

Gently pry off the cable connecting the keypad sensor. The keypad sensor should now be completely separated from the phone.
-
To reassemble your device, follow these instructions in reverse order.
