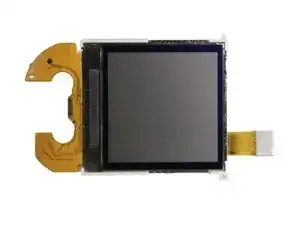

Once the LCD Screen Cover has been removed, the LCD Screen can be accessed as shown in this guide.
Werkzeuge
-
-
Slide the cover release button towards the bottom of the phone
-

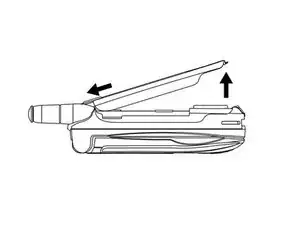

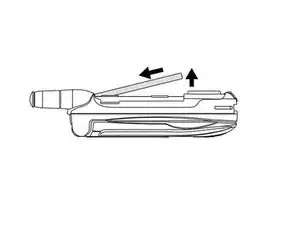

Once the battery cover pops up, slide the cover towards the top of the phone and lift up.
-
-
-

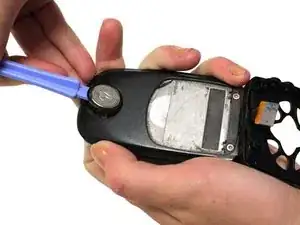

With the help of plastic opening tools, remove the i710 name plate and Motorola logo from the backside of the phone.
-
The four screws holding the upper half of the phone together should now be visible.
-
-
-
With a H1.5 screwdriver, unscrew the four H1.5 sized screws from the back of the phone.
-

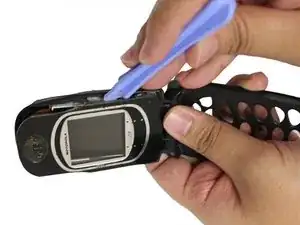

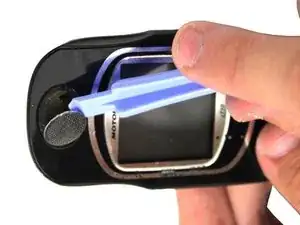

Flip the phone onto its back and, with the help of a plastic opening tool, remove the metal speaker cover that is above the LCD screen.
-
-
-

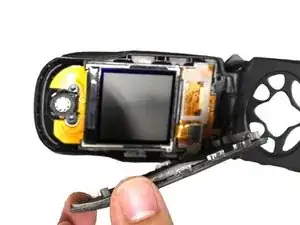

Slide a plastic opening tool along the edge of the LCD Screen Cover to separate the cover from the phone casing. Apply a small amount of force towards the cover if necessary.
-
The LCD screen should now be completely separated from the phone.
-
-
-
Use a spudger to detach the ribbon cable connecting the the LCD Screen to the rest of the phone.
-

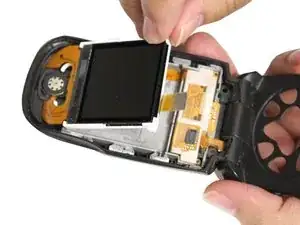

The LCD Scren will now lift out from the phone casing.
-
To reassemble your device, follow these instructions in reverse order.
