This guide shows how to open the Motorola i866 and replace the main keyboard.

  1. V6wDocsfY1sHHLTf
    V6wDocsfY1sHHLTf
    HfcYLJYFKxTPQYXn
    • Undo the headphone jack and USB port cover with your fingertip. Place your middle finger in the indent on the upper left side of the back of the phone.

  2. YCou1whsstKoAWRW
    • Pull back until cover is removed. Place cover aside.

  3. qmtEZiVoBB5WZTP6
    • Locate battery and use your index finger to grasp the upper left side of the battery and pull back to remove. Set battery aside.

  4. wQUrom1tpeHY2Fuw
    • Locate and use your thumb to slide the SIM card to the right until it is removed and set it aside.

  5. aYHiPfNyLQMSFlmt
    aYHiPfNyLQMSFlmt
    a6XgTdCwEvVdEBfZ
    • Remove eight black .4 centimeter screws on the top, bottom, and sides of the phone with a T5 Torx screwdriver by inserting it into the screws and turning it to the left. Set screws aside.

  6. iaka3ADLmsEDHZAl
    • Loosen four fastener pieces on the side and bottom with a plastic opening tool to pry them backwards.

    • Insert the plastic opening tool between the loosened casing and the rest of the phone and pry the two pieces apart to remove the casing.

  7. HDXEyMMmUHwPnLwF
    • Remove the .3 centimeter silver screw with the T5 Torx screwdriver.

    • Use your fingertips to lift up the circuit board and lay it on the side of the phone. Note that the two pieces are attached by a gold and black strip.

  8. nFNPmXbisBpIB1Vu
    • Locate and grip the black, white, and blue keyboard layer with your fingernail, lift up to remove it.

  9. XNiD4qcHfLNTPTk1

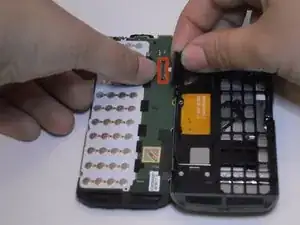

    • Disconnect piece connecting the two parts of the phone by using your index finger and thumb to pry them apart, you will hear a soft click.

    • Set aside the part of the phone without the strip.

  10. ZATHCRko665xmWuD
    ZATHCRko665xmWuD
    lOgWhp2EQ4ESLHdB
    bTGNuVc6RPfopiGy

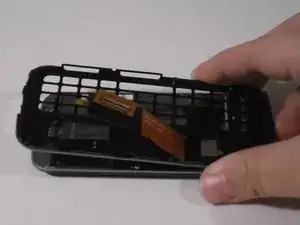

    • Remove the loose volume, speaker, and camera buttons.

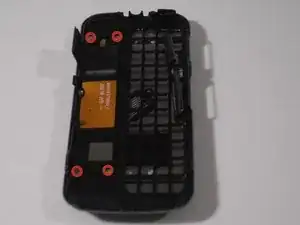

    • Remove four silver .2 centimeter screws above and below the gold and black strip with a T4 Torx screwdriver.

    • Separate the two parts of the phone by holding one side in each hand and pulling them apart. Set the part that held the slide-out keyboard aside.

  11. i63GdJ1eXYGFekMe
    i63GdJ1eXYGFekMe
    FjIHQf5AF2xkFtVL
    UfUHxWCxeHW44Z2J

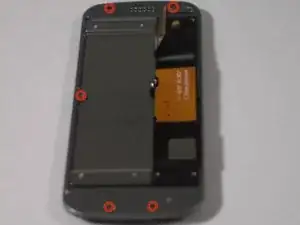

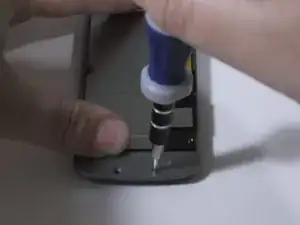

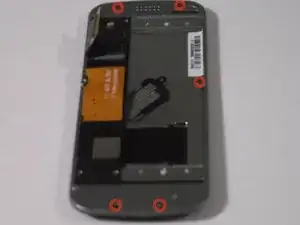

    • Remove six silver .3 centimeter screws from the top, bottom, and sides with the T4 Torx screwdriver.

    • One silver screw will be hidden by the sliding mechanism. Once you have removed the screw visible on one side, slide the mechanism over to reveal the other one.

    • The four screws on the top and bottom may not be visible. If your phone is new or has not been taken apart before, the four screw tops will be hidden by little circular stickers. These can be peeled off with tweezers.

  12. ORxXUXcKvkQMdtcN
    • Insert the flat end of a Spudger in between these two pieces of the phone and move it along the sides to loosen and pry apart.

  13. avXgekeIZh5WBTpm

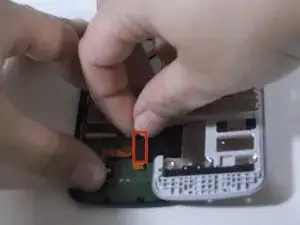

    • There will be a short, wide, black strip connecting the two parts. Separate in the same manner as the black and gold strip. Set aside the piece with the strip attached.

  14. ACo6K1tNDseeL2ZB
    ACo6K1tNDseeL2ZB
    OHRo6yZU5NMGaLCx

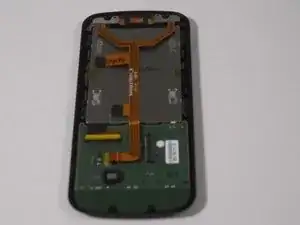

    • Peel back the yellow tape on the side of the screen using tweezers or your fingernails. Lift away screen and board.

  15. 5dhPIZuVA3gEmx1o

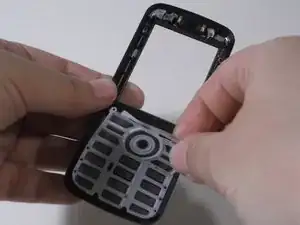

    • Remove keyboard by lifting it out with your fingertips.

Abschluss

To reassemble your device, follow these instructions in reverse order.
