Mouse Repair USB Connector Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Repair USB Connector for mouse

Check Vol, Data -, Data +, Ground for sure.

  1. TDZyDuOOUIYr6TIx

    • I have old mouse (no have USB) and old flash drive (can't use memory). So, I will use flash drive's USB to replace mouse's connector

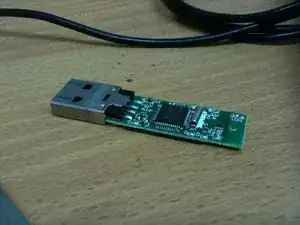

  2. G3P6CksBBCR3PwES

    • Use soldering iron for take USB from flash drive.

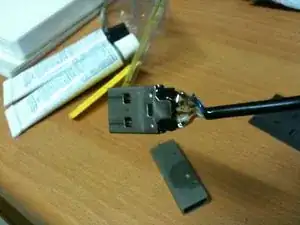

  3. dQL1ArCweWSMlweX

    • Soldering components together. In this case Red=Vol, White=Data -, Green=Data +, Blue=Ground.

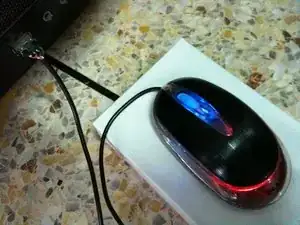

  4. TDVTMYBXVJPbZEnx

    • Test mouse.

  5. qEWfDEHncAbxtem4

    • If mouse is working, use heat-shrinkable tubing for close component and done.

Abschluss

To reassemble your device, follow these instructions in reverse order.
