Mpow 059 Battery Replacement

Geschrieben von: Danielle Furtado
  • Kommentare: 4
Mpow 059 Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

Find out how to change the battery in your Mpow 059 Headphones. The battery is located in the left ear cup and is simple to replace. This repair may be necessary if your batteries are no longer working and it may affect the noise cancellation, signal transmission, and audio drivers.

Note: If possible, make sure your battery is completely depleted before replacing it. If a lithium-ion battery is punctured during replacement, it may spark and create a fire.

  1. xH5r4gIuJfokM6i2
    xH5r4gIuJfokM6i2
    3dGB2wEPJeQWaUSp

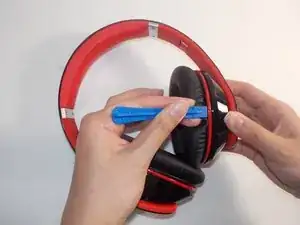

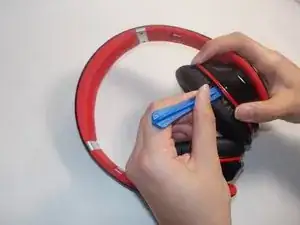

    • Place the iFixit opening tool between the soft ear cushion and the hard plastic of the speaker.

    • Pry the soft ear cushion away from the hard plastic using a moderate amount of pressure.

    • There is adhesive holding the ear cushion to the speaker so it may take a little patience to remove.

    • Applying too much pressure can damage ear cushion.

    You state the battery is behind the right ear cup, it was behind the left cup on mine. The picture shows "L".

    Art Horton -

    Hi Art, thank you for pointing this out! We will make that correction. Sorry for any confusion.

    Sarah Westberg -

  2. bVHldAvXevRrEr3I

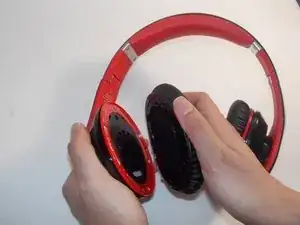

    • Remove the ear cushion away from the speaker to completely detach it from the headphones.

  3. sR1aDm2TD6gMkDs6
    sR1aDm2TD6gMkDs6
    VW46XHovpwxkTVmN

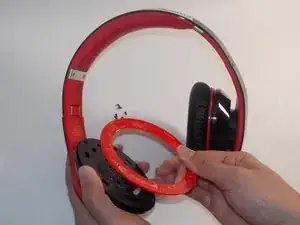

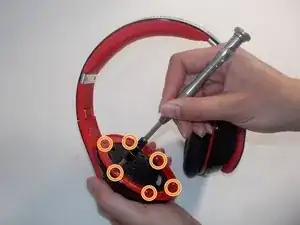

    • Use the Phillips #1 screwdriver to remove the six screws holding the red plastic cover in place.

    • Carefully peel the plastic cover off the left cup to reveal the ear cup's internal components.

    • There is some adhesive holding the red cover down so be careful as you remove it so it doesn't break or crack.

  4. H1F6RMqwKnOnkdp3

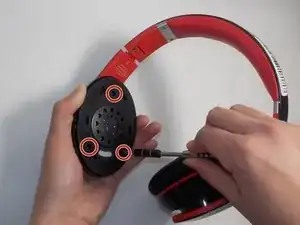

    • Use the JIS J00 screwdriver to remove the 3 screws that secure the black cover.

  5. VrY4N5DPIFGCOqSK

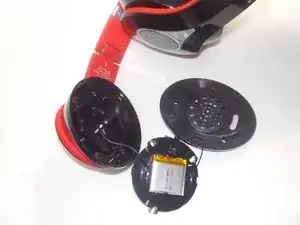

    • Remove the black cover to reveal the battery. The battery is attached to the back of the black cover.

    • The plastic cover of the headphones is connected to the battery housing by a wire connector. Be careful not to harm this cable by pulling the cap too hard during disassembly.

    • Undo the cable and remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Danielle Furtado

Mitglied seit: 25/03/22

406 Reputation

2 Kommentare

Hello

What kind of glue should I use to put new pad?

Martin Dromigny -

What is the part number for the replacement battery? Where can I find one?

hdm_1@comcast.net -
