Mr. Coffee DRX5 Warming Plate Replacement

Geschrieben von: Michael Chhim
  • Kommentare: 1
Mr. Coffee DRX5 Warming Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 - 5 Minuten

Einleitung

  1. o6NOILZKLTCPOBmB
    o6NOILZKLTCPOBmB
    CRVSKmACWbAqhBAM
    m2RdrSx5AriHDpXe

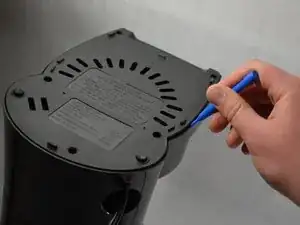

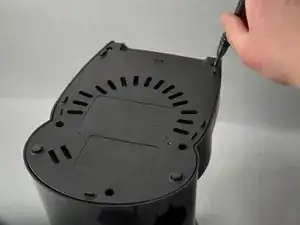

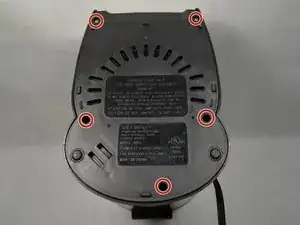

    • Use a Phillips #1 screwdriver to remove the two 9mm screws and the three 11mm screws on the bottom of the coffee maker and remove the bottom plastic cover.

  2. N4OJkMOXyOMBC2JF

    • Slide display out of the way.

  3. nnClQKaMNDGniT2c
    nnClQKaMNDGniT2c
    gJRoweHo1jSE6vtT
    YJAhmTtDNa1YmNFA

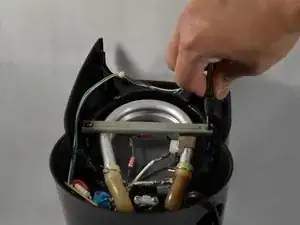

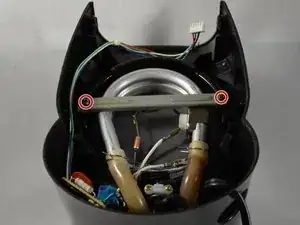

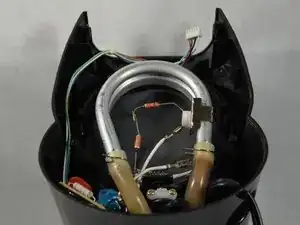

    • Using a Phillips #1 screwdriver, remove 12mm screws from heating element bracket and remove bracket.

  4. gggXR6fJCOiQDvFg

    • Pull heating element out of the way.

  5. DWMTsGRObsKyrnC3

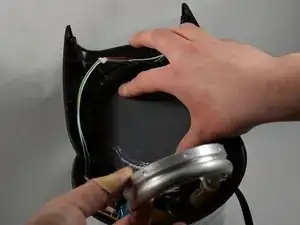

    • Twist warming plate clockwise so that the tab is out of place. Remove warming plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
