Mr. Coffee DRX5 Water Reservoir Replacement

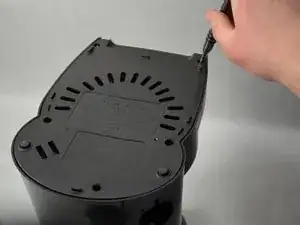

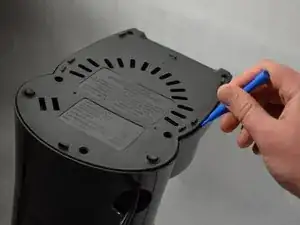

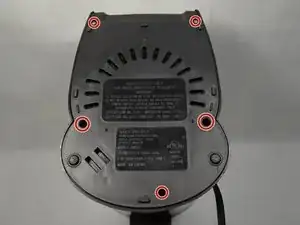

Use a Phillips #1 screwdriver to remove the two 9mm screws and the three 11mm screws on the bottom of the coffee maker and remove the bottom plastic cover.

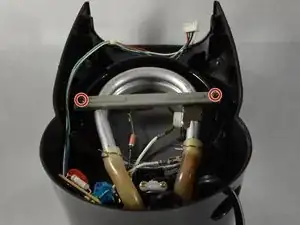

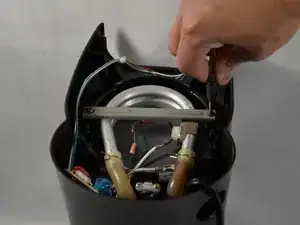

Using a Phillips #1 screwdriver, remove 12mm screws from heating element bracket and remove bracket.

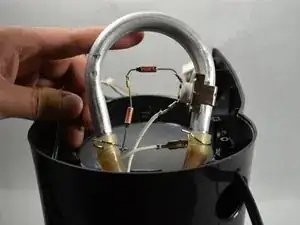

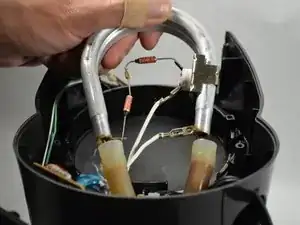

Remove 2 hose clamps from heating element. Remove heating element from tubes.

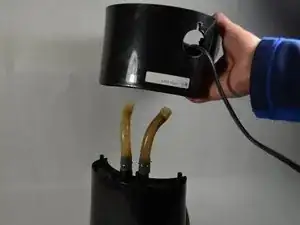

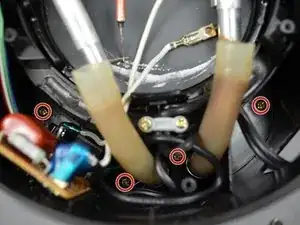

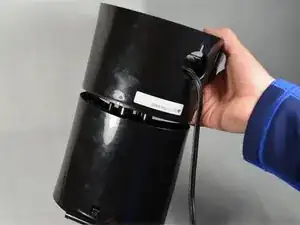

Using a Phillips #1 screwdriver, remove one 10mm screw, and three 11mm screws connecting the reservoir to the base and remove reservoir from the base.
