Einleitung
Before replacing the heating plate, make sure that your machine is unplugged and dry, and that your work space is clean.
Werkzeuge
-
-
Flip the Mr. Coffee DW13 over so that the lid is facing away from you and the base is facing toward you.
-
-
-
Remove the eight 11 mm screws that secure the base of the machine with a Phillips Head #2 screwdriver.
-
-
-

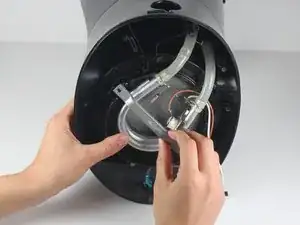

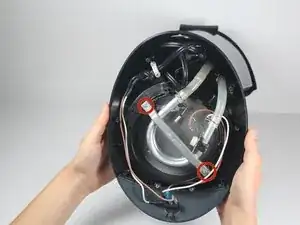

Using the Phillips Head #2 screwdriver, remove the two 13 mm screws that secure the silver support bracket.
-
-
-

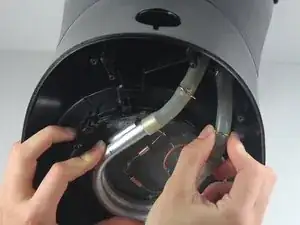

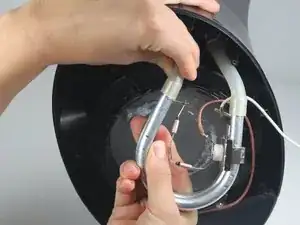

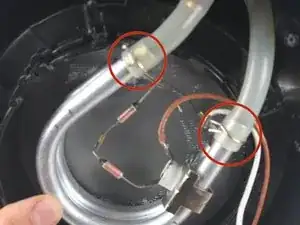

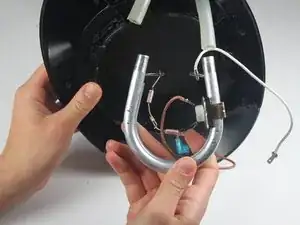

Separate the tubing from the heating coil by grasping the tubing in one hand and the heating coil in the other. Gently pull them apart.
-
-
-

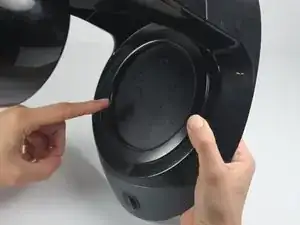

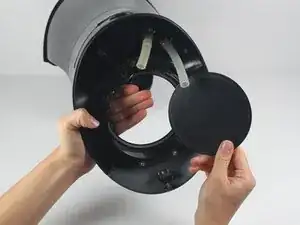

Place your hand on the front side of the heating plate and push towards the bottom of the coffee maker to pop the heating plate out of place.
-
To reassemble your device, follow these instructions in reverse order.
5 Kommentare
so where do you get a replacement heating element (Im looking for one for a FTX49)
You're missing steps and including unnecessary steps in this instruction. As well, you don't give a source for replacement warming plates. You might want to consider a rewrite.
I made a substitute hot plate from some sheet metal that I bought at the hardware store, and now I’m back in action with my delicious coffee.
Why they manufacture these plates out of poorly protected mild steel is beyond me. No, actually it isn’t beyond me - using inexpensive, unsuitable components certainly increases their profits. These plates almost certainly cost them less than 1¢ each, which is far cheaper than the 2¢ they’d pay for a suitable, durable part.
Lance J -
Before removing anything, do an in circuit resistance of those two small copper colored cylinders with a black end.
They are thermal fuses, and should have in circuit resistances close to zero.
Their placement is important, especially the one under the silver support bracket.
