Mr. Coffee DW13 Tubing Replacement

Geschrieben von: Kinsie Ward

Kommentare: 8

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

Then you will remove the base of the coffee maker, a couple small wires and with a little tug the tubing will pop right out.

Werkzeuge

Schritt 1

Before performing this repair, be sure that your machine is unplugged and dry and that your work space is clean.
Flip the Mr. Coffee DW13 over so that the lid is facing away from you and the base is facing toward you.

Schritt 2

Remove the eight 11 mm screws that secure the base of the machine with a Phillips Head #2 screwdriver.

Schritt 3

Gently lift the base cover to expose the inside of the coffee machine.

SO interesting! I love fixing things, myself. Many things are so

easy, if looked at logically, and/or long enough.

Nice site!

I don't have a clue how I came here to it.

haskinskristin43 - 10/06/17

Anyone know the Mr. Coffee part number for the white tubing? My Mr. Coffee maker model #BVMC-EVX23. Ty.

Pam -

Schritt 4

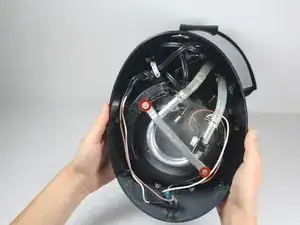

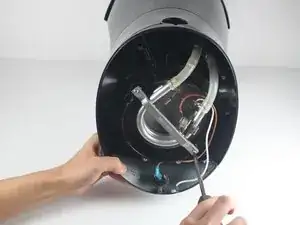

Identify and remove the two 13mm screws securing the silver support bracket using a phillips head screw driver.

Schritt 5

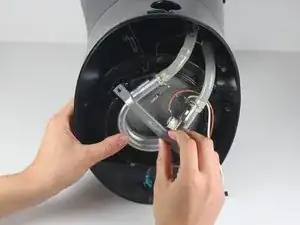

Gently lift the silver support bracket freeing the heating plate from the heating coil.

Schritt 6

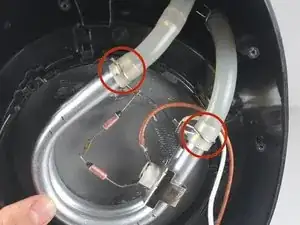

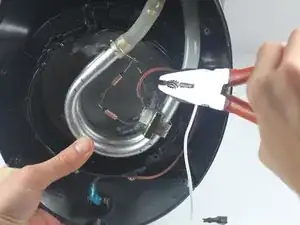

Use pliers to pinch and loosen the crimps.

Schritt 7

Once the crimps are loosened, slide them down the tubing.

Schritt 8

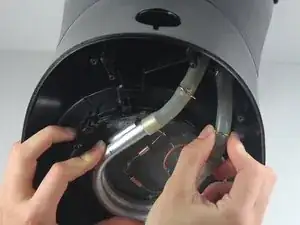

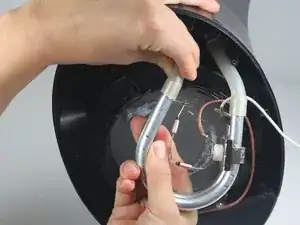

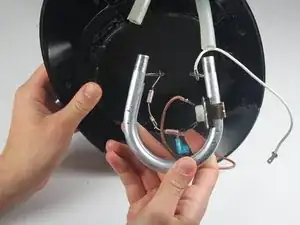

Separate the tubing from the heating coil by grasping the tubing in one hand and the heating coil in the other and gently pulling apart.

Schritt 9

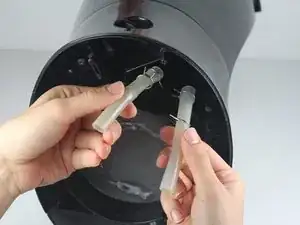

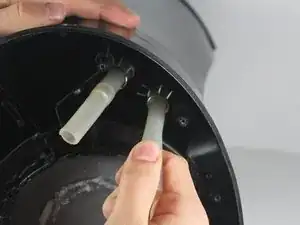

Gently pull on plastic tubing, freeing it from the coffee maker

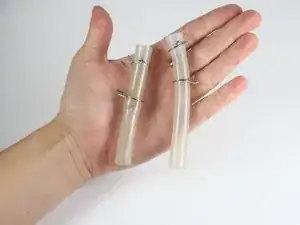

One of the tubes has a red ball check valve in the middle. Be sure to note which hole it connects to.

Abschluss

To reassemble your device, follow these instructions in reverse order.
