Mr. Coffee TF6 Bottom Cover Replacement

Geschrieben von: Johnny Romeka
  • Kommentare: 0
Mr. Coffee TF6 Bottom Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 7 Minuten

Einleitung

The bottom cover must be removed prior to replacing or repairing any internal parts of the Mr. Coffee TF6 (hot plate, power cord, and water tubes). In the event that the bottom cover breaks or must be replaced, a replacement cover must by obtained from the manufacturer.

  1. KOk2NJJLKYcPG6nR

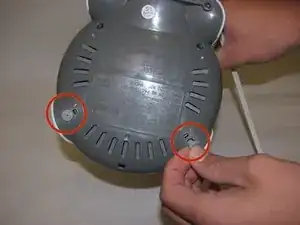

    • Facing the bottom of the TF6, carefully pull the two rubber feet out with your hands.

  2. ZOtqFHMGIVvjGvuB
    ZOtqFHMGIVvjGvuB
    wtGPtRteiWYPQr1W

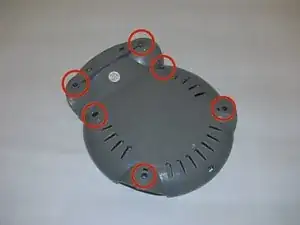

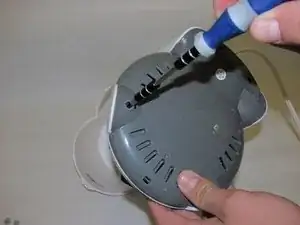

    • Using a Phillips #1 screwdriver, remove the six 11mm Phillips screws that are holding the bottom cover in place.

  3. j6y6jlYdABtxCNSv

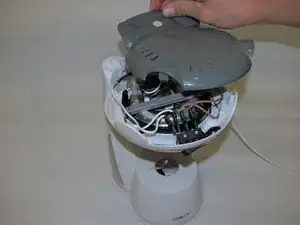

    • Gently lift the bottom cover, detaching it from the main body of the TF6.

Abschluss

To reassemble your device, follow these instructions in reverse order.
