Mr. Coffee TF6 Dust Cover Replacement

Geschrieben von: Jordan
  • Kommentare: 0
Mr. Coffee TF6 Dust Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Replacement of the TF6's dust cover is necessary when it is cracked or broken. Replacement dust covers can be obtained from any Mr. Coffee TF series coffeemaker or online at Mr. Coffee's website.

  1. 3sPeZbpWKe2oEqYT
    3sPeZbpWKe2oEqYT
    HISbSpyQrYki4kl2

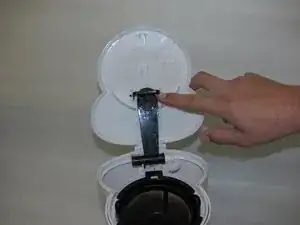

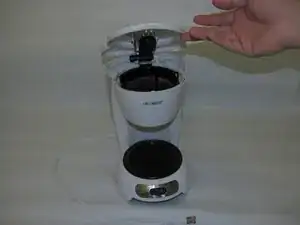

    • Facing the front of the TF6, gently lift the dust cover along its hinge until it reaches its designed stopping point.

  2. Ghx1QPVs6wyZ5hOM
    Ghx1QPVs6wyZ5hOM
    3HZPEocBCRrWVUfD

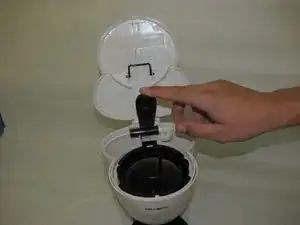

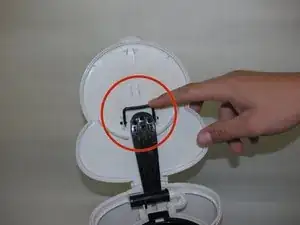

    • Orient the retaining bracket upwards (away from the main body of unit).

    • Do not push the retaining bracket beyond its designed range of motion. It may snap if too much force is applied outside its limit.

  3. EqBB3xUteKPnTqBS

    • With the retaining clip in its released position, pull the spout down towards the filter basket.

  4. EBjGMLyliNEPQ4ar
    EBjGMLyliNEPQ4ar
    HI565AU1sYLZujYq

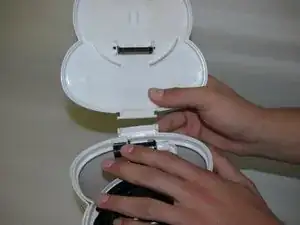

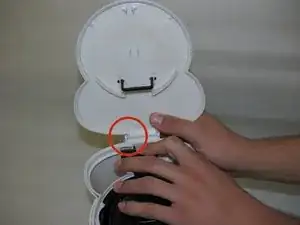

    • Carefully detach the dust cover by disengaging the locking pins, starting at one side.

    • Extra force may be required to disengage the dust cover's locking pins. Refrain from applying excessive upward force on the dust cover, as dong so may cause the pins to snap under pressure.

Abschluss

Follow these steps in reverse order with a new Dust Cover.
