Mr. Coffee TF6 Internal Water Tubes Replacement

Geschrieben von: Jordan
  • Kommentare: 0
Mr. Coffee TF6 Internal Water Tubes Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Leaks can occur within the Mr. Coffee TF6. In most cases, replacing the internal water tubes will correct this issue. You will require 2 inches of silicone tubing (.5 in. OD) to replace the original water tubes inside the TF6.

  1. KOk2NJJLKYcPG6nR

    • Facing the bottom of the TF6, carefully pull the two rubber feet out with your hands.

  2. ZOtqFHMGIVvjGvuB
    ZOtqFHMGIVvjGvuB
    wtGPtRteiWYPQr1W

    • Using a Phillips #1 screwdriver, remove the six 11mm Phillips screws that are holding the bottom cover in place.

  3. j6y6jlYdABtxCNSv

    • Gently lift the bottom cover, detaching it from the main body of the TF6.

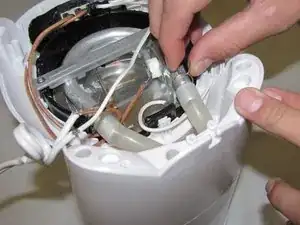

  4. LWJ6ViPryamAeYRV

    • Using your fingers, gently pinch and detach the two metal clips that secure the silicone tubing to the metal tubing on the TF6.

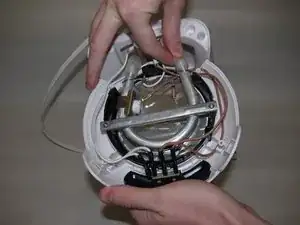

  5. uFoZ4MpVDHTJIpIX

    • Carefully pull the silicon tubing off of the metal tubing.

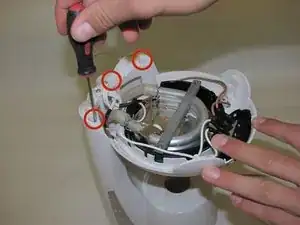

  6. M5YoEEPslfBBJwma

    • Using a Phillips #1 screwdriver, remove the three 13mm Phillips screws that hold the lower and upper assemblies together.

  7. DL4bRCpIij1XlpLb

    • Gripping the lower assembly with one hand and the upper assembly with the other, gently pull the assemblies apart.

    • If all screws have been removed and the tubes have been detached, the assemblies should separate easily.

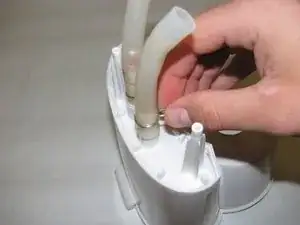

  8. hBbfAdTs6fom6nuR

    • Using your fingers, gently pinch and detach the two metal clips that secure the silicone tubing to the plastic tubes on the upper assembly.

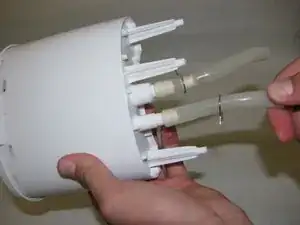

  9. OuCJBYAMlusEloGd

    • Carefully pull the silicon tubing off of the plastic tubing on the upper assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
