Einleitung

If you determine that your tire is flat due to a ruptured or damaged inner tube this guide will help you replace the inner tube.

Werkzeuge

  1. ZGQTfLLs5GF1pFKd
    • Flip the bicycle upside down so that the bicycle rests on the seat and handlebars. The bike should be able to stay standing on its own.

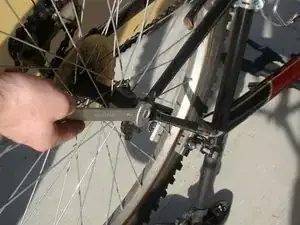

  2. kM5cu6eVn6nKGGHk
    • Using a 15mm wrech, loosen the axial nut.

  3. dEFTPtPS2PA1TWRW
    dEFTPtPS2PA1TWRW

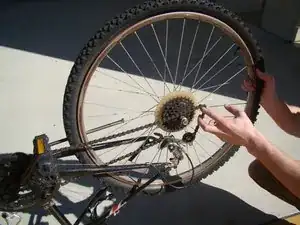

    jiL44ePAH5gnRGQ1

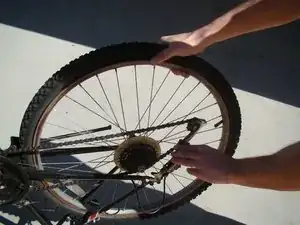

    • Pull the chain slack and remove the tire.

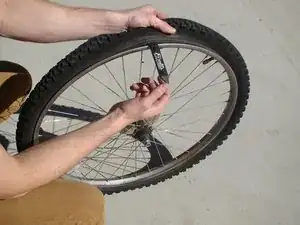

  4. 4LNxE14GGv6T4WvK
    4LNxE14GGv6T4WvK

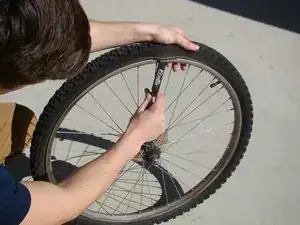

    MXPcehHRVOelK4YG
    • Insert the flat side of the tire lever between the inside edge of the rim and the seal of the tire.

    • Clip the tire lever to the nearest spoke.

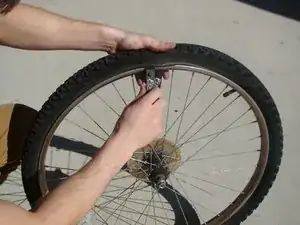

  5. KHGDLAcTvse1abbp
    KHGDLAcTvse1abbp

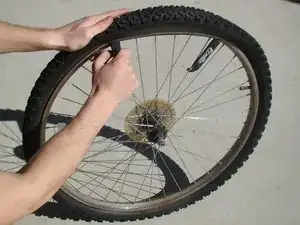

    6cWyTCqwtDdoGSLx
    • Insert the second tire lever next to first and slowly slide it along the outside edge of the rim until one side of the tire is off the rim.

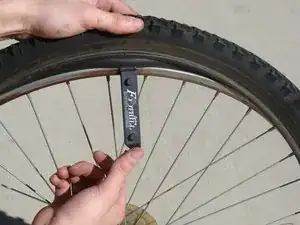

  6. YvD4aTXTfhtZQsCw
    • Re-insert the first tire lever to hook the opposite seam of the tire and repeat steps 3 through 5.

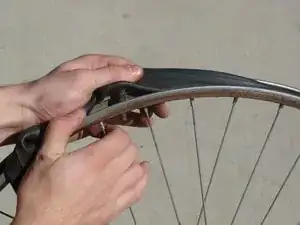

  7. ZlJTNwoPFktTYTC6
    • Remove the cap from the inner tube, and pull the valve stem out of the rim.

Abschluss

To install new inner tube, follow these instructions in reverse order.

Samantha Rawlins

Mitglied seit: 21/01/14

473 Reputation

Ein Kommentar

Replace also means how to put it back together!
