Munchkinz Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your speaker in not functioning correctly, follow this guide and replace the speaker.

  1. GV5515spihyTBxYH

    • Insert spudger into the USB Micro slot and pry the case apart.

    • Be careful not to go too deep and bend the prong inside the Micro USB port.

  2. 3GgUIQkjOrhgogyf
    3GgUIQkjOrhgogyf
    ykdtIQOPIE6CcOCT

    • Slide the wide plastic opening tool across the seem, separating it if you can't pry the device open using just the spudger.

    • Gently separate the case so none of the cords inside are disconnected

  3. WioZRpJ1bpXaNS4N

    • After prying the device apart, it should look like this.

  4. xJqB2uAsFIoB1CrI
    xJqB2uAsFIoB1CrI
    vhQvCiT6Jmjbx33w

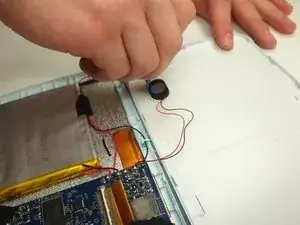

    • Use the slim plastic opening tool to remove the speaker from its position on the case.

  5. edPvKrMrZRE62Wcd

    • Locate the red and black wires that connect the speaker to the motherboard.

  6. EWOdNjifHeT1cSOc

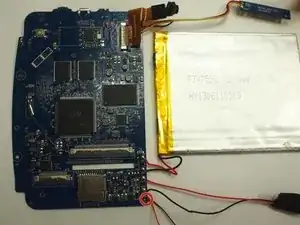

    • Un-solder the red and black speaker wires that are connected to the motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
