N-Strike Nite Finder EX-3 Trigger Replacement

Geschrieben von: Kyle Schober
  • Kommentare: 0
N-Strike Nite Finder EX-3 Trigger Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

If pulling the trigger of your Nerf Nite Finder doesn't cause it to fire, the trigger might need to be replaced. This guide shows how to do so.

==CAUTION==

Be aware of springs under compression. Take care so these small parts do not fly off the blaster and get lost.

  1. 4NVMsVHKLFAMaTUi

    • Place the blaster upside down on the table, and remove the screw in the bottom of the handle.

    • Remove the battery door and take the batteries out.

  2. PsugWU4BjIuiJnbg
    PsugWU4BjIuiJnbg
    sWu2y5HqQ6N5QovR
    5CFHt3ZMKhEeoBBp

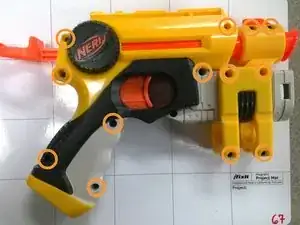

    • Set the blaster on its side with the screws facing up (the blaster will be placed on its left side). Remove all 14 phillips head, 8.2 mm screws and set them aside.

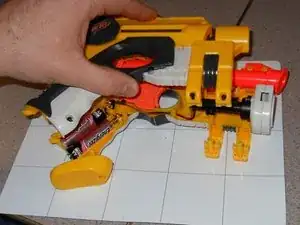

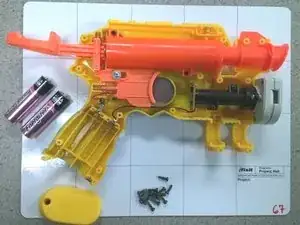

    • Lift the side of the blaster off exposing its internal parts.

  3. aJAMxKevqiGDRlrf
    aJAMxKevqiGDRlrf
    B5iF5EEK316TiLuJ

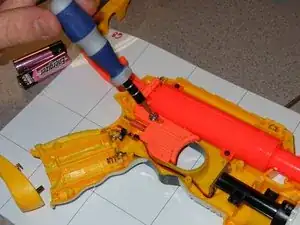

    • Remove the phillips head, 10.2 mm screw holding the trigger in place.

  4. RBKifYiZJil3WZba

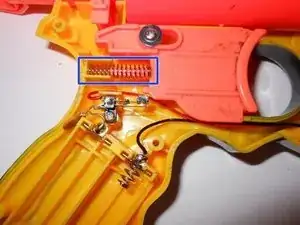

    • Remove the trigger by pulling the piece straight up.

    • Caution: Do not let the spring fly off the spring

Abschluss

To reassemble your device, follow these instructions in reverse order.
