Nabi 2S Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will aid you in the process of removing the camera of the device. This is useful in replacing a broken or dis-functioning camera.

  1. 1ZqiTlgxyXHXJ6XD

    • Remove the red rubber case from the device.

  2. FGQtSMl5mRiWrG3Z
    FGQtSMl5mRiWrG3Z
    QkEvKFt1TtppgCkC

    • Make sure the screen is facing away from you and the back cover is facing you.

    • Using a Phillips #0 Screwdriver, unscrew the 3mm screws counter-clockwise in each corner of the plastic back cover. It will be a total of four screws. The smaller case on the back cover is attached to the main cover so it will not need to be removed.

  3. DC53iXlqcXo6bqAq

    • Using the plastic opening tool, remove the case.

    • Removing the case will take a bit of effort and force. We recommend using two hands and if possible another person to help. It will require some gusto.

    • It is helpful to pry at the corners first to loosen the case.

  4. cyfxEWlvrlXCrXZH

    • After the back case is loosened, remove it from the device to change or access the battery.

  5. OVNT2hriOCpWYLO1
    OVNT2hriOCpWYLO1
    dJq2eNJaHy2EVfli

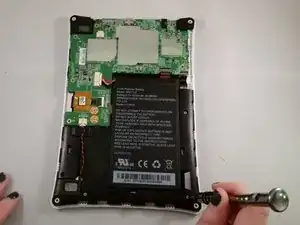

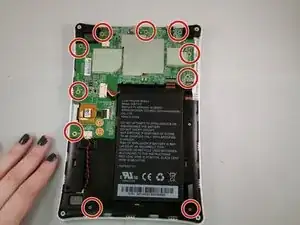

    • Unscrew the circuit board from the motherboard by using a Phillips #0 screwdriver to unscrew the ten 4mm screws in a counter-clockwise rotation.

  6. d1TPa5YDsgToCe2e
    d1TPa5YDsgToCe2e
    OnKjR1GlODFUQvyI
    nHjZkTyOUcYZSerp

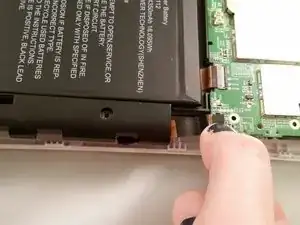

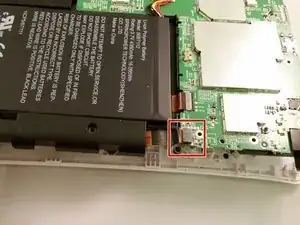

    • The camera is attached to the circuit board and then tucked underneath. Gently grip the part attached to the circuit board and pull it up and away from the circuit.

    • Gently slide the camera out from underneath the circuit board.

    • The camera is stuck to the device with adhesive tape so do not rapidly remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
