Nabi 2S Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will aid you in the process of removing the screen of the device. This is useful in replacing broken screen.

  1. 1ZqiTlgxyXHXJ6XD

    • Remove the red rubber case from the device.

  2. FGQtSMl5mRiWrG3Z
    FGQtSMl5mRiWrG3Z
    QkEvKFt1TtppgCkC

    • Make sure the screen is facing away from you and the back cover is facing you.

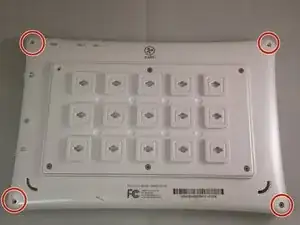

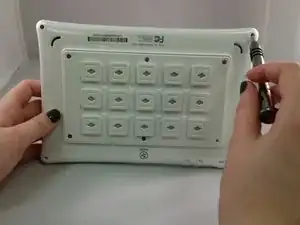

    • Using a Phillips #0 Screwdriver, unscrew the 3mm screws counter-clockwise in each corner of the plastic back cover. It will be a total of four screws. The smaller case on the back cover is attached to the main cover so it will not need to be removed.

  3. DC53iXlqcXo6bqAq

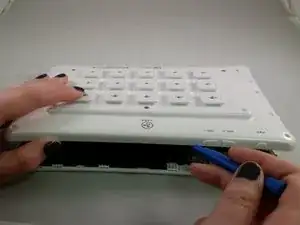

    • Using the plastic opening tool, remove the case.

    • Removing the case will take a bit of effort and force. We recommend using two hands and if possible another person to help. It will require some gusto.

    • It is helpful to pry at the corners first to loosen the case.

  4. cyfxEWlvrlXCrXZH

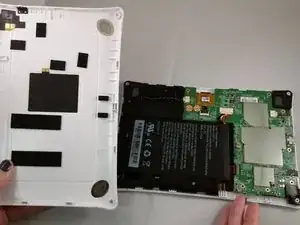

    • After the back case is loosened, remove it from the device to change or access the battery.

  5. rqnj4MHXPs2VxBlJ
    rqnj4MHXPs2VxBlJ
    dmWuSQTaqvfT62BG

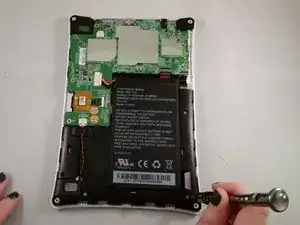

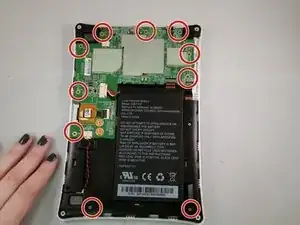

    • Unscrew the circuit board from the motherboard by using a Phillips #0 screwdriver to unscrew the 4mm screws in a counter-clockwise rotation.

  6. QfFJiqBYQPBysCUC
    QfFJiqBYQPBysCUC
    a3gvLuB3RpaV5qFu
    wthhoao1pYlRSNfD

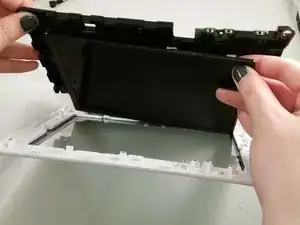

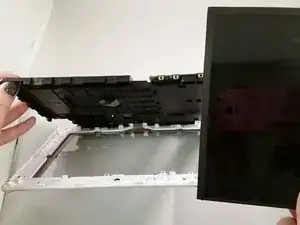

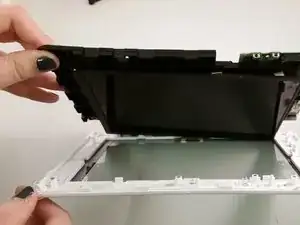

    • Pull motherboard away from the plastic.

    • Use hands to detach the screen because it is taped to the back of the motherboard.

    • Grip the screen and slide it out from between the plastic and the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
