Nabi 2S Speakers Replacement

Geschrieben von: Riana Ramirez
  • Kommentare: 0
Nabi 2S Speakers Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide will aid you in the process of removing the speakers of the device. This is useful in replacing broken speakers

  1. 1ZqiTlgxyXHXJ6XD

    • Remove the red rubber case from the device.

  2. FGQtSMl5mRiWrG3Z
    FGQtSMl5mRiWrG3Z
    QkEvKFt1TtppgCkC

    • Make sure the screen is facing away from you and the back cover is facing you.

    • Using a Phillips #0 Screwdriver, unscrew the 3mm screws counter-clockwise in each corner of the plastic back cover. It will be a total of four screws. The smaller case on the back cover is attached to the main cover so it will not need to be removed.

  3. DC53iXlqcXo6bqAq

    • Using the plastic opening tool, remove the case.

    • Removing the case will take a bit of effort and force. We recommend using two hands and if possible another person to help. It will require some gusto.

    • It is helpful to pry at the corners first to loosen the case.

  4. cyfxEWlvrlXCrXZH

    • After the back case is loosened, remove it from the device to change or access the battery.

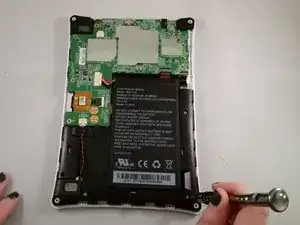

  5. dJJXIlEAvsVgxPvl
    dJJXIlEAvsVgxPvl
    RLRtRNRV5IvwMC5B

    • Unscrew the circuit board from the motherboard by using a Phillips #0 screwdriver to unscrew the 4mm screws in a clockwise rotation.

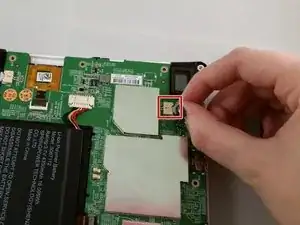

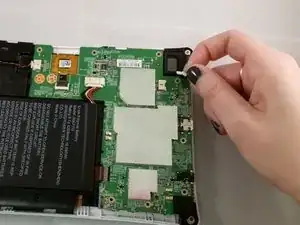

  6. dJeEpcP4bHK3v1SJ
    dJeEpcP4bHK3v1SJ
    lKJOOcxOw4ld4lEE

    • The speakers are attached to the device via wires that are connected to a circuit. Grasp the circuit connected to the right speaker.

    • Slide the connected wires from the circuit to detach the speakers.

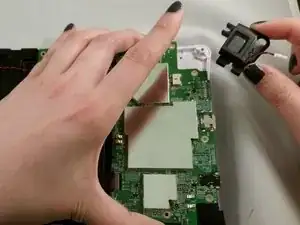

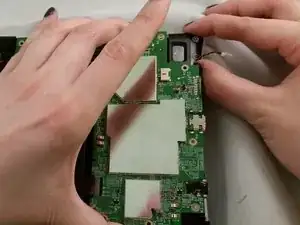

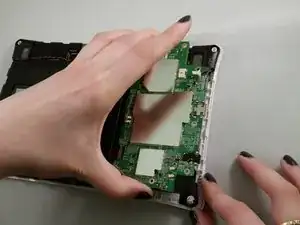

  7. TEptJiwn3xoZrTuY
    TEptJiwn3xoZrTuY
    IkqCB1ZbfjprduQd
    eQAVxKV4sOUdYBlT

    • Lift the circuit board to get better access for removing the speaker.

    • Grasp the speaker with your fingers and lift it from the plastic

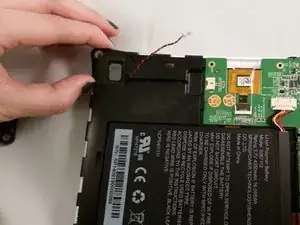

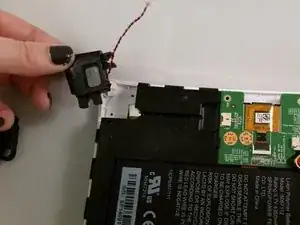

  8. IBs3ugYdDvHXqDfI
    IBs3ugYdDvHXqDfI
    oGbsnipfG5jkVhCN

    • Repeat steps 6 and 7 for the second speaker on the left side.

    • The circuit board should still be loose to remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
