Nabi DreamTab HD8 Speaker Replacement

Geschrieben von: JayRam
  • Kommentare: 0
Nabi DreamTab HD8 Speaker Replacement

Schwierigkeitsgrad

Very easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

The Nabi DreamTab HD8 contains two small internal front-facing speakers which can be sensitive to acute physical damage or overuse. The speakers themselves contain small magnets, so when removing the screws, you'll encounter some magnetic repulsion. We suggest using a non-magnetized screwdriver for this replacement. It uses 800 watts. The tablet is MP3, AAC and WMA compatible. Speakers can at times be one of the leading problems with tablets which is why they are located on the top of the open device to locate easier.

  1. ZrqyvvJbSiwTnV5K
    ZrqyvvJbSiwTnV5K
    oq2Oo6meCukCSVDd

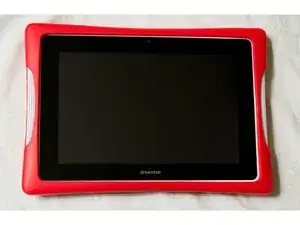

    • Position the Nabi DreamTab onto a non-metallic surface so that the screen is facing towards the ceiling, and the DreamTab logo appears closest to you.

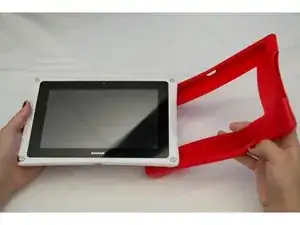

    • Remove the red silicone case from the Nabi DreamTab HD8.

    • These steps are specific to the included manufacturer case. If you have a different protective case, please refer to the respective manual for removal.

  2. GyWNl4xLaZCYTPTB

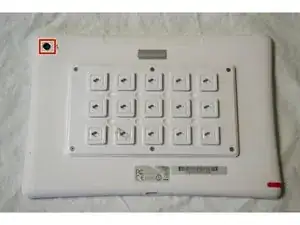

    • Turn it upside down, ensuring the small black circular camera is in the upper left hand corner.

    • Proceeding beyond here will void the manufacturer's warranty. If you wish to continue, follow these steps carefully.

  3. KTu2EFELfOjfv2al
    KTu2EFELfOjfv2al
    F5wAFsbRVww2kEgU

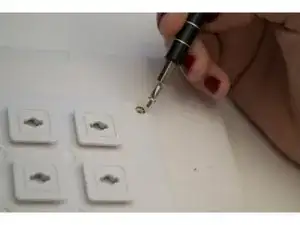

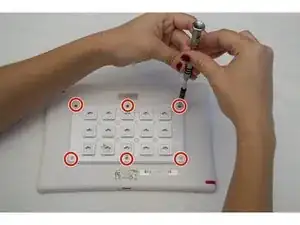

    • Remove the six 2.5 mm JIS #000 screws attaching the custom grid to the back panel.

  4. VvtcEImjOASmg5XG
    VvtcEImjOASmg5XG
    idisrdwxaEXLXWRD

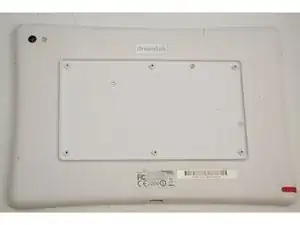

    • Grasp one of the protruding squares and gently lift off the back plate. Place it aside for later reassembly.

    • This piece should come off very easily. If you have trouble removing it, all of the screws may not be completely removed. Check and proceed.

    • Do not confuse the golden threads for screws.

  5. IM2LAN6kQIcwBtJY
    IM2LAN6kQIcwBtJY
    orytEWIqRe1Ckhh3
    yDsJFYKWBX3ZrHiJ

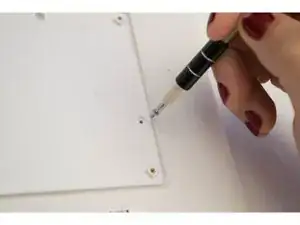

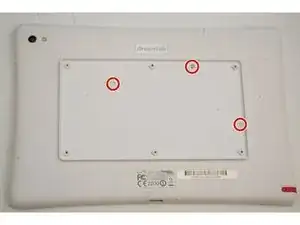

    • Remove the three 3.5mm screws using the J-0 screwdriver attaching the back panel to the device.

  6. SxaAjswo4tYFJnjO
    SxaAjswo4tYFJnjO
    RqAWxMB25SoXfjyM
    QLALYXb5ASuCcALn

    • Rotate the top of the device towards you so that the audio jack appears on the right side of the device.

    • The audio jack will have a small symbol of headphones next to a small 3.5mm diameter hole.

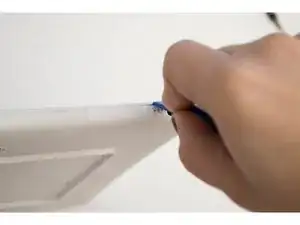

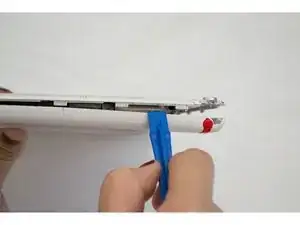

    • Wedge the plastic opening tool between where the front and back case panels meet near the audio jack.

    • Pry the device open using moderate force until you hear a clicking sound. This is the sound of the clips unlocking.

    • Move along the perimeter of the entire device using the same prying motion to gradually separate the front and back panels.

    • Once the edges are open return to the same starting position next to the audio jack.

    • During this step, you may crack some parts of the case. Gently pry around the speakers, audio jack and charging cable ports to reduce this damage.

  7. YMCRLxRNIwfh6LmW
    YMCRLxRNIwfh6LmW
    qedvQhYVdXLAwaqN
    SMJYoq21fIVDAORA

    • Once you've completed separating the front and back panels, place the device back onto the table, display facing downward and camera at the top left.

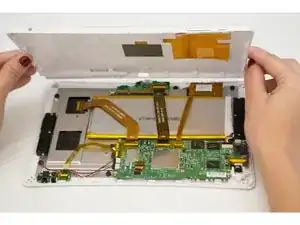

    • Lift off the back panel and rotate the device 180 degrees while the screen is facing down.

  8. 4aopLDyJyDF4DIUl
    4aopLDyJyDF4DIUl
    wCGjPqXVmoTfYCHk
    I1H2HXbJLwiSARDp

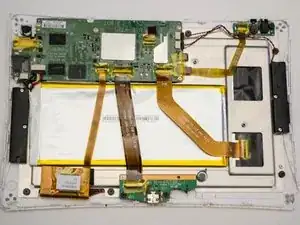

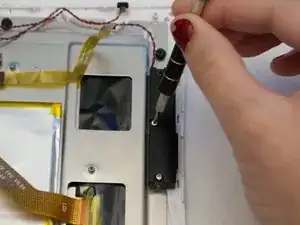

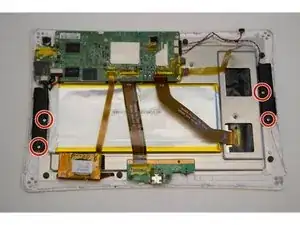

    • The speakers are located on either side of the open device. Both are labeled as L and R for distinction.

    • Remove the four silver 2.5mm Phillips #000 screws.

  9. YwgIOXlTSM3fNbZq
    YwgIOXlTSM3fNbZq
    xjwhcXHHcga3NAOg
    NMa31tRoFTMLEJbl

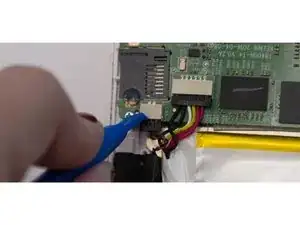

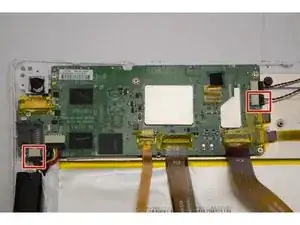

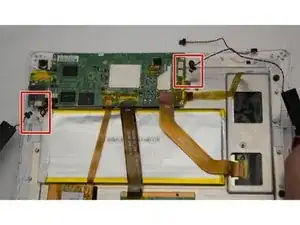

    • In addition to the four 2.5 mm screws, the speakers are physically connected to the motherboard via cables.

    • Using the plastic opening tool, disconnect the connectors at this location to completely free the speakers.

    • These components fit very snugly together, so make sure to use firm pressure to disengage the connectors. Avoid fingers from slipping to prevent injury on other sharp components of the object.

Abschluss

To reassemble your device, follow these instructions in reverse order.
