Nabi Jr Battery Replacement

Geschrieben von: Jimmy Nguyen
  • Kommentare: 7
Nabi Jr Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

20 - 40 Minuten

Einleitung

  1. a4peHPXaNpv1KgnQ

    • Remove the red rubber case from the device. This should come off with ease.

  2. 31Rm2URx1mt3QTbA

    • Turn the device so the screen is facing away from you.

    • Using a philips head, size #00, screwdriver, remove the screws in each corner of the plastic casing.(total of 4 screws)

  3. OXgD2KH1Gvc2aoCY

    • Remove the device casing using a small plastic pry bar.

    • This might take a little bit of force to accomplish, don't be afraid to go at it with a little gusto.

  4. IuuqXKxQDbVltQpZ

    • After loosening the back cover, remove it from the device so you can get at the innards.

  5. PUxDHeEQ1X2WLUfX

    • Lift the battery up from the motherboard.

    • Don't rip the soldered wires from the board.

    • The battery is stuck to the motherboard with adhesive, it may take a little pull to separate.

  6. eC3FKQCHVXIGWwCs

    • Remove the battery from the motherboard

    • De-solder the colored wires

    • Be sure to note the order in which the wires are connected to the board before desoldering them.

    • Be careful while removing the solder off of the colored battery wires. The soldering iron will be extremely hot

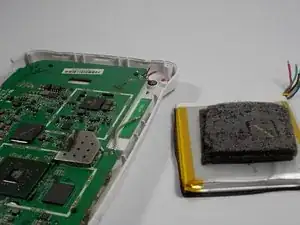

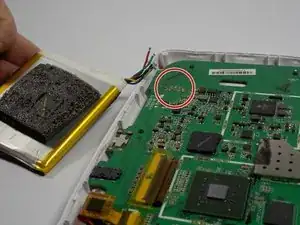

  7. pEDIxtUUexpxnsPX
    pEDIxtUUexpxnsPX
    w5qe5pPOwuavS1XC

    • Replace the old battery with the new one

    • Solder the wires of the new battery into the pads on the motherboard

    • Be careful when soldering the wires in. Soldering iron will be extremely hot

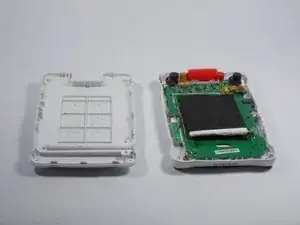

  8. SS1hRpyvgsHKKkZB

    • Once the wires are fully soldered, put the new battery back to the initial position

    • Close the case by putting the back cover back on the device

    • Will take some force

    • Make sure the battery is not in the way of the back cover

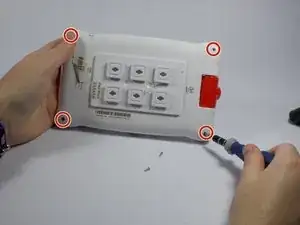

  9. KJrEZJRGC6BB1xqG

    • Once the back cover is on, screw in the four screws that you had taken off in the beginning

    • Put the red rubber casing back on.

Abschluss

If all the steps were followed correctly, the device should be fully closed and ready to go

Tinte & Feder

Jimmy Nguyen

Mitglied seit: 24/03/15

271 Reputation

7 Kommentare

Thank you for sharing the idea ,but I need that NABI JR battery. So ,where from I can purchase it .

Lus Ka -

I have seen them on ebay but it's easier to find a Nabi 2 battery on ebay. The Nabi 2 battery is quite a bit larger but with a very minor mod to the Nabi Jr. the Nabi 2 battery will fit and give you a much longer run time from a single charge.

darcshadow -

My old Nabi jr battery is a plug in with 2 reds 1 white and 2 black wires. My new Cameron sino battery is blue green red yellow black. What is the order to resolder them.

Dennis Blixt -

I have the same problem with the problem of the replacement battery not having the same wiring configuration or plug. Did you ever get this resolved?

Delores Duke -

Where can I buy the battery live in Mexico

Roos -

My old Nabi jr battery is a plug in with 2 reds 1 white and 2 black wires. My new Cameron sino battery is blue green red yellow black. What is the order to resolder them. I can’t find anywhere to purchase the non solder style battery. Please help

Delores Duke -

Caution!!! Check your battery type by using these instructions to open your Nabi Jr FIRST. This works with the older style battery only. Some models have a newer 6 wire McNair battery that just unplugs. Unfortunately, I haven't been able to locate a replacement for that just yet.

John M. -
