Nabi Jr Rear Case Replacement

Geschrieben von: Tobias Young
  • Kommentare: 0
Nabi Jr Rear Case Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace the rear case on your Nabi Jr.

  1. a4peHPXaNpv1KgnQ

    • Remove the red rubber case from the device. This should come off with ease.

  2. 31Rm2URx1mt3QTbA

    • Turn the device so the screen is facing away from you.

    • Using a philips head, size #00, screwdriver, remove the screws in each corner of the plastic casing.(total of 4 screws)

  3. OXgD2KH1Gvc2aoCY

    • Remove the device casing using a small plastic pry bar.

    • This might take a little bit of force to accomplish, don't be afraid to go at it with a little gusto.

  4. IuuqXKxQDbVltQpZ

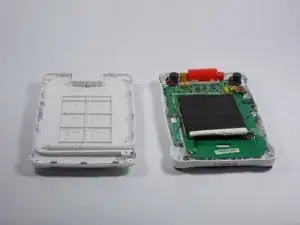

    • After loosening the back cover, remove it from the device so you can get at the innards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
