Nabi Jr Screen Replacement

Geschrieben von: Jimmy Nguyen
  • Kommentare: 3
Nabi Jr Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 - 40 Minuten

Einleitung

  1. a4peHPXaNpv1KgnQ

    • Remove the red rubber case from the device. This should come off with ease.

  2. 31Rm2URx1mt3QTbA

    • Turn the device so the screen is facing away from you.

    • Using a philips head, size #00, screwdriver, remove the screws in each corner of the plastic casing.(total of 4 screws)

  3. OXgD2KH1Gvc2aoCY

    • Remove the device casing using a small plastic pry bar.

    • This might take a little bit of force to accomplish, don't be afraid to go at it with a little gusto.

  4. IuuqXKxQDbVltQpZ

    • After loosening the back cover, remove it from the device so you can get at the innards.

  5. ewtxVQuf3BrnVhoJ

    • Use the Philips #00 screwdriver to remove the 5 screws from the motherboard

  6. WiwgjGSpJExsJcTL

    • De-solder the grey wire from motherboard

  7. LyNjvhcIbsNYac1Y

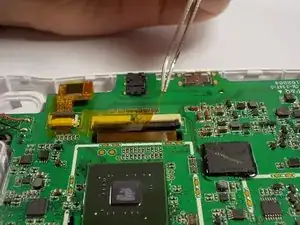

    • Use tweezers to peel off all yellow tape from the motherboard

    • Yellow tape is used in all locations where there is ribbon cable present.

  8. 1TTEjoEGinYsg1lS
    1TTEjoEGinYsg1lS
    4LI4M4tRFGFTB4Ml

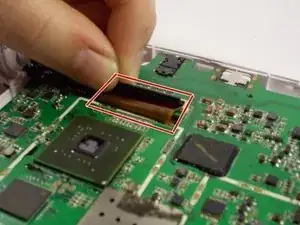

    • Remove all three ribbon cables from the motherboard by lifting up the locking tabs.

    • Pull black locking tabs up in opposite direction of ribbon cable to remove.

    • Use tweezers to pull the ribbon cable out of the locking tab's slot

  9. hneKTwO3entFpr1k
    hneKTwO3entFpr1k
    ZfdsuXc1rGL5Q5Be

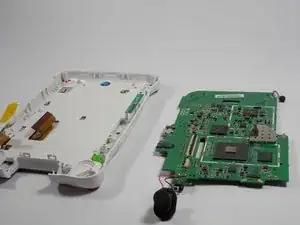

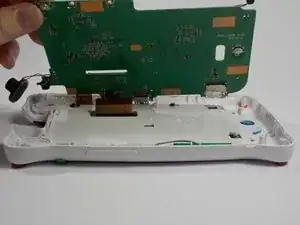

    • Lift motherboard to separate it the from the case shell.

  10. SXisRTKmOCbpMKuQ

    • Remove the 6 screws that hold the screen in place

  11. U4cctYEasGHMvUiS
    U4cctYEasGHMvUiS
    fAjlagWkfBYu1jiy

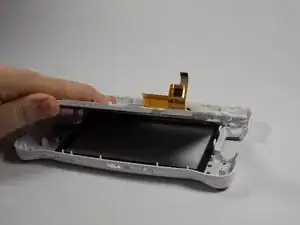

    • Remove the screen from the front casing

  12. TZVrLitfSmMk4RCK

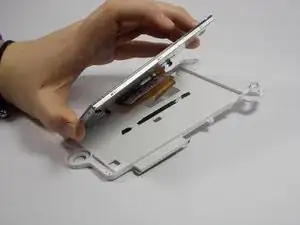

    • Separate the screen from the plastic casing.

  13. 6rDBVV4fnIpVxG6k

    • Replace the old screen with the new screen

Abschluss

To reassemble your device, follow these instructions in reverse order.
