Neato Botvac 65 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

Step by step instruction on how to replace the battery pack for the Neato Botvac 65.

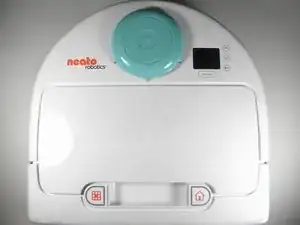

  1. S1iPRNARaaRw2UcU
    S1iPRNARaaRw2UcU
    Zuupk5vPxiVqBDKV

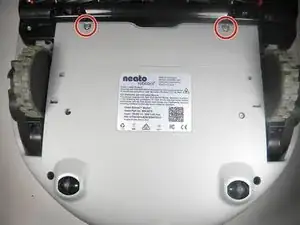

    • Flip the device upside down.

    • Locate the two (2) 20mm screws on the batttery plate.

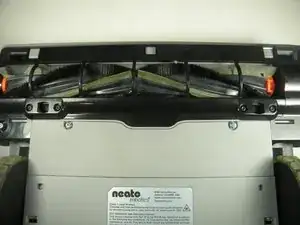

  2. pOT6NR3KIX1DwoRn
    pOT6NR3KIX1DwoRn
    ENJWep1Ik11KvpHj

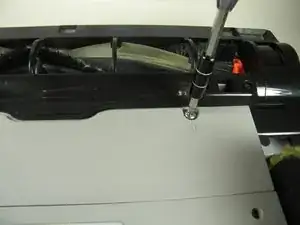

    • Use the Phillips #1 screwdriver to loosen both screws.

  3. GChC3xdEfrTTH6Pa

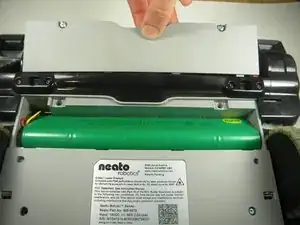

    • Remove the battery back plate to reveal the battery.

  4. qRctajEUe1GphIr3
    qRctajEUe1GphIr3
    lLtoswcSfrDORtWu

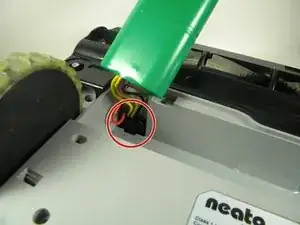

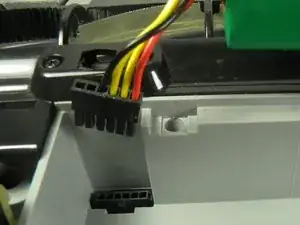

    • Disconnect the current battery by pulling the connector from the base and pushing on the clip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
