Neato Botvac 65 Top Cover Removal

Geschrieben von: Joseph Caton
  • Kommentare: 0
Neato Botvac 65 Top Cover Removal

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

Keine Schätzung

Einleitung

In order to gain access to the components of the robot the top cover needs to be removed.

  1. S1iPRNARaaRw2UcU
    S1iPRNARaaRw2UcU
    Zuupk5vPxiVqBDKV

    • Flip the device upside down.

    • Locate the two (2) 20mm screws on the batttery plate.

  2. pOT6NR3KIX1DwoRn
    pOT6NR3KIX1DwoRn
    ENJWep1Ik11KvpHj

    • Use the Phillips #1 screwdriver to loosen both screws.

  3. GChC3xdEfrTTH6Pa

    • Remove the battery back plate to reveal the battery.

  4. qRctajEUe1GphIr3
    qRctajEUe1GphIr3
    lLtoswcSfrDORtWu

    • Disconnect the current battery by pulling the connector from the base and pushing on the clip.

  5. A2Ql3LCyPNY2NsVC

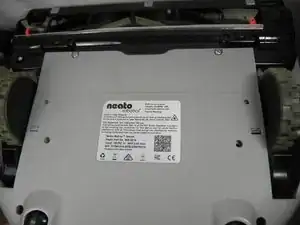

    • Flip the device upside down.

  6. wNZjRGqkZ6ZBrBC5
    wNZjRGqkZ6ZBrBC5
    PbDMYCNpFycGiPkA

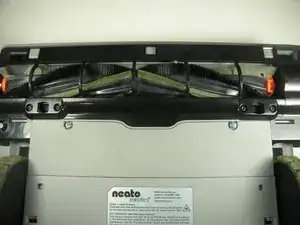

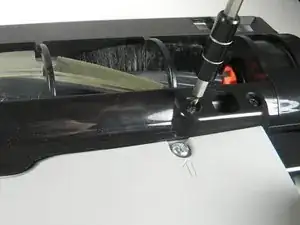

    • Use the screwdriver to take off the four (4) 10mm screws located near the brush which secure the plastic guard.

  7. IDBotYh1w5sPbKOJ
    IDBotYh1w5sPbKOJ
    ZrixqfqHOuAYmlnn

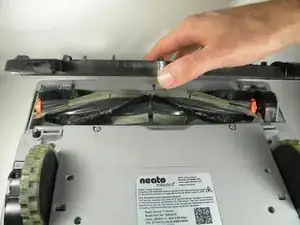

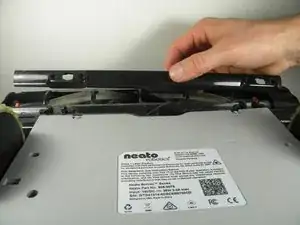

    • Remove the plastic brush guard.

    • Pull off the plastic covering the brush.

  8. gNHfTKW1fNUNRDXX

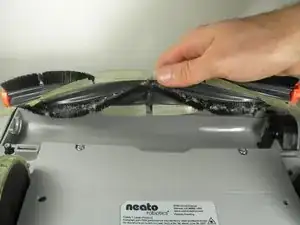

    • Lift the brush to clean or replace.

  9. nN3WsdWpGAVjwmxR

    • Flip device upside down.

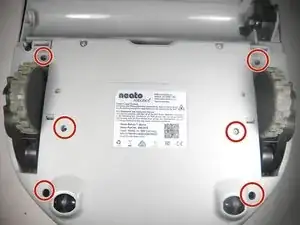

    • Locate the six (6) screw connected to the top cover.

  10. eX2myr1fnsxAqn1O

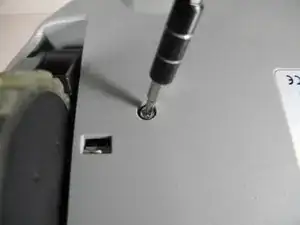

    • Remove eight (8) star screws using the T10 bit.

  11. wGBDBVQY4kKpxlQ1
    wGBDBVQY4kKpxlQ1
    VHW3ybGV3VxKXcbD

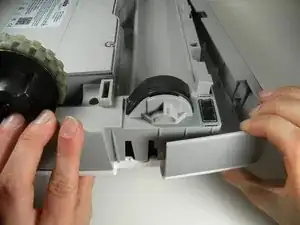

    • Pull off one side of the brush front cover, and then pull off the other.

  12. P1oUTxMYCLKWyvsO

    • Flip right side up and turn around.

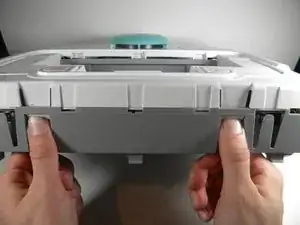

    • FInd the two clips connecting the top cover to the body of the device.

  13. BRfd2nxBZrWt3mlY
    BRfd2nxBZrWt3mlY
    ORqXQXuwbHM1IK2K

    • Lift up on the top cover gently.

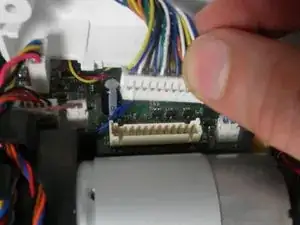

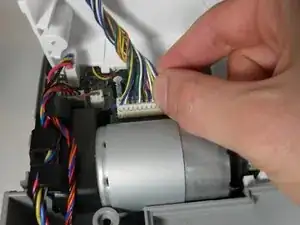

    • Disconnect the connector from the motherboard to detach the top cover from the robot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
