Einleitung
This guide will show you how to replace a faulty battery.
Werkzeuge
Ersatzteile
-
-

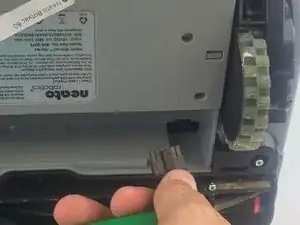

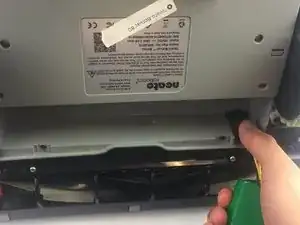

First, open the bin compartment and flip the switch to the off position.
-

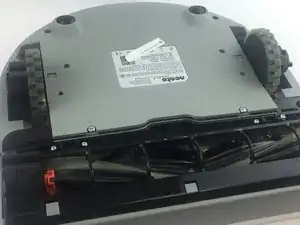

Once you have done this, flip the robot over. Loosen the 2 screws, and lift the flap off
-

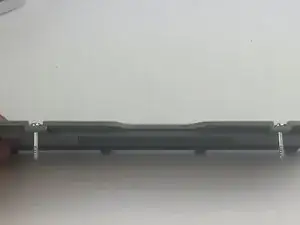

You will need to remove the 22.5mm bolts with a J1 Torx screwdriver.
-
-
-

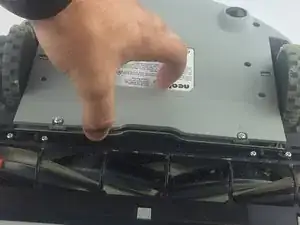

Locate battery clip.
-

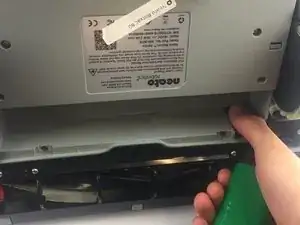

Press down on latch with thumb and slide clip back.
-
Remove the battery.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
