Neato Botvac 80 Wheel Replacement

Geschrieben von: Brandon Blank
  • Kommentare: 10
Neato Botvac 80 Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will allow the user to completely remove the wheels from the device. Make sure to complete the rear-bumper removal guide before proceeding.

  1. OrUjbSXdJ5RVI5Fe

    • Grab the rear bumper with both hands on either side.

    pull the free bottom corners out a bit to free the catches

    wilfried -

  2. OTTUNgKNMHC1tGhM

    • Pull the left and right sides away from the machine to unclip the bumper. This requires that you bend the plastic a little bit. Unclip one side a little bit and allow the prong to rest on the side of the machine. Then unclip the other side and pull off the bumper parallel to both sides

  3. HmShj46VbkurbkXG
    HmShj46VbkurbkXG
    cUCOhjyaF4GEGfjb

    • Looking from above, remove the two 11mm screws with a torx T10 screwdriver.

  4. fq44y4gZoIKqKN15

    • Begin by placing the robot on it's back and removing the six 11m screws using a Torx T10 screwdriver.

  5. OIMIuTFUVxFMG3g4
    OIMIuTFUVxFMG3g4
    AdnGoKwlpjWAwHqF
    ECFso3wTUwEkEfcD

    • To remove the top, you must press in both of the clamps at the same time and push upwards.

    • When removing the top, before you can completely take it off you must unplug the LCD power cable from the motherboard.

  6. XSMBdJgrDNOTOoEK
    XSMBdJgrDNOTOoEK
    oxGbuTAHAxmRIsVQ
    x56W3Rr3U4AEvW3x

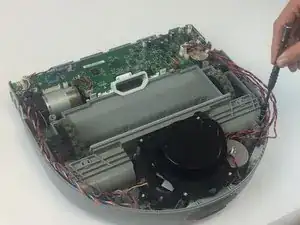

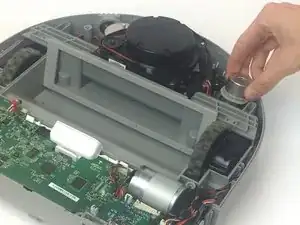

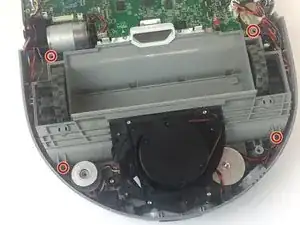

    • Locate the screws that mount the wheel extensions on the Botvac.

    • Unscrew the four 11mm screws and bolts indicated to remove the frame.

    • The metallic weight (as shown) does not require the removal of any screws. However, make sure to complete this before proceeding.

  7. tVAjt4sZMbFDOJTD
    tVAjt4sZMbFDOJTD
    lBhoshCmeF2uvNWZ

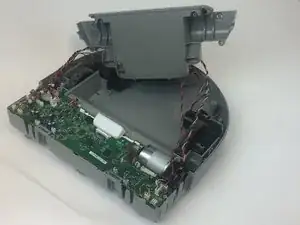

    • Gently lift the frame holding the laser. This will free the wheels from their casing.

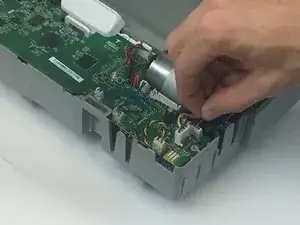

    • Remove the wheel's wires that are attached to the motherboard.

    • Once removed, you may now free the wheels.

  8. mYJkHsfxLYu6lTkt
    mYJkHsfxLYu6lTkt
    kHNoX5T1ndglNP3q
    uB5XuWJJKKBOZjo5

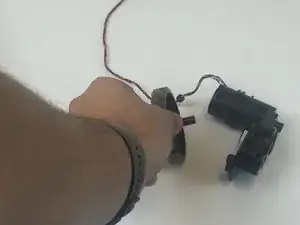

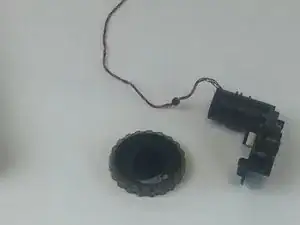

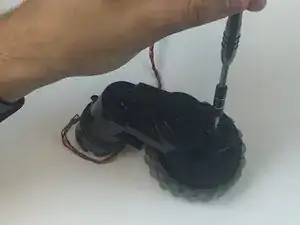

    • Remove the wheel usings the T15, or similar, attachment to remove the 32.5mm screw.

    • Finally, just grab and separate the tire from its axle.

    pay exact attention to the wires keeping them well out of the way during reassembly because they will give problems when the case is closedup. Unplugging wires is unnecessary as there is plenty of slack to work carefully with.

    Bill Weekes -

Abschluss

To reassemble your device, follow these instructions in reverse order.
