This guide explains how to remove the motherboard. Before reaching the mother board several prerequisites steps are needed first.
Werkzeuge
-
-
The cord has prongs on it that are a little difficult to get out. Use a flathead screwdriver to press the release tab on the connector to remove it.
-
-
-
Once you have everything out get the plastic opening tool and pry open the large black plastic piece.
-
With a little force it should come out.
-
-
-
Firmly grasp the back cover and pull away from the Botvac one side at a time.
-
Removing the cover will expose two 1.3mm T10 screws that must be removed to separate the cover halves.
-
-
-
Remove these two 13mm T10 screws. You will need to use the extension in your tool set since they are deep in the casting.
-
-
-
Eight 13mm T10 screws on the underside of the Botvac hold the casing together. These screws are not self-retained so make sure that you don’t lose them in the disassembly process.
-
-
-
The screws pictured here on either side of the Botvac require the extension in your tool set to be removed.
-
-
-
On the back of the Botvac there are two retaining tabs that must be pressed to be released.
-
With the tabs released the top and bottom cover halves can be separated.
-
-
-

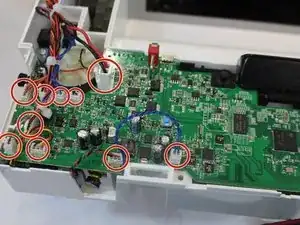

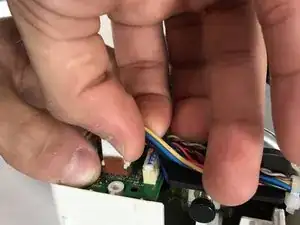

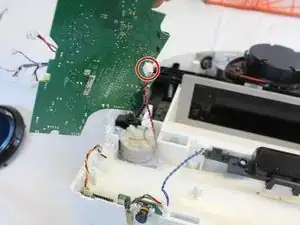

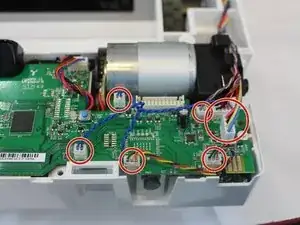

Carefully lift the top cover of the Botvac. On the right side of the Botvac is where you'll find the LCD screen connector to the motherboard. Carefully pull on the connector to disconnect it from the motherboard.
-
-
-
There are two 0.5cm #1 Phillips screws holding the LCD screen to the top cover. Remove these screws to lift screen off the cover.
-
-
-
With the two screws removed you may lift the screen off the cover. Carefully remove the connector from the screen by pulling on the connector.
-
To reassemble your device, follow these instructions in reverse order.
